Square D 3104140020 NEMA Motor Starter, Type S, replacement coil, 24VAC 60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting
- MPN: 3104140020
- UPC: 785901395256
- PPN: SCH-31041-400-20
CAD
$282.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

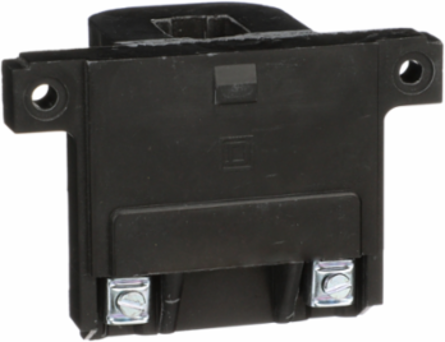

The coil can be easily replaced in Type S contactors or starters. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor. This coil is rated for 24 VAC 60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth48.3 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- Out
- Rohs Eur In Scope
- No
- Rohs Eur Full Compliance Status
- Not Applicable/Out of Scope
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Height Nominal
- 54.7 mm
- [Ue] Rated Operational Voltage
- 24 V AC 60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504508000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterOutside of Europe
Rohs Eur StatusNot Applicable/Out of Scope
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Consumption27 VA
Inrush Power In Va245 VA
Product Or Component Typecoil
Sustainable PackagingNo
Width Nominal81.5 mm
Accessory / Separate Part Destinationclass 8502 type SA (series A)/SB/SC contactorclass 8536 type SA (series A)/SB/SC starterclass 8903 type SM lighting contactor
Package Weight(Lbs)213.188 g
Warranty (In Months)18
Environment Attributes Main
- Nema Size
- 0, 00, 1
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- No
Take BackNo
Eu Rohs DirectiveNot Applicable/Out of Scope
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- coil
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
