Brady 148647 Collapsible Gate Valve Lockout Device, 7-13" Diameters
- MPN: 148647
- UPC: 754473581442
- PPN: BRD-148647
- UNSPSC: 39121909
CAD
$145.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

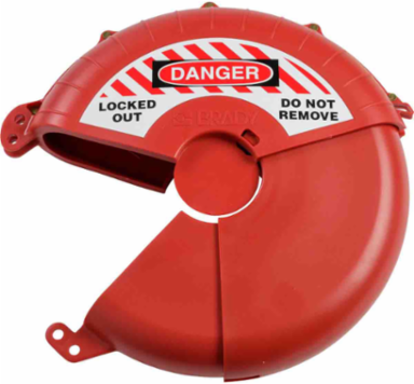

The Collapsible Gate Valve Lockout Device from Brady® is a durable, easy to store device for the widest range of gate valves.
Features

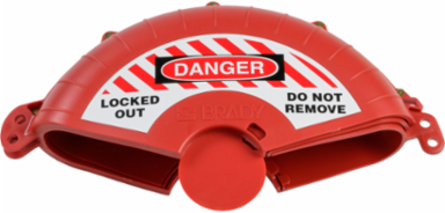

- Lockout covers fold into smaller sizes for easy storage in maintenance carts and lockout kits
- Collapsible Gate Valve Lockout Devices from Brady® enable users to secure valves with 3 in. - 18 in. handle diameters with just 3 devices sizes

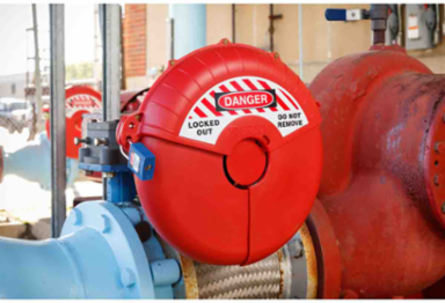

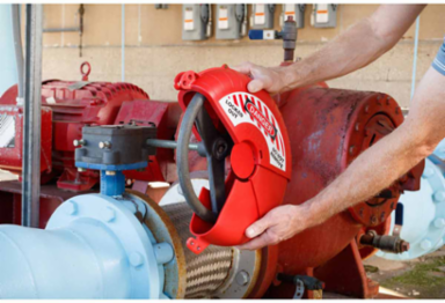

- Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
- Rugged injection-molded styrene construction withstands harsh outdoor conditions
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 29 CFR 1910.147
- Labels Supplied
- Yes
- Maximum Number of Padlocks
- 2
- Risk Type
- Mechanical Risk
- Total Qty per Pack
- 1 Piece(s) / Piece
- Brady Material Number
- LOTO-81
- Material
- ABS Plastic
- Depth (mm/cm/m)
- 101.10 mm
- Diameter (mm/cm/m)
- 381.00 mm
- Dimensions (Metric)
- 101.10 mm W x 346.20 mm H x 381.00 mm Dia x 101.10 mm D
- Hole Inside Diameter (mm/cm/m)
- 73.70 mm
- Lockout Width (in/ft/yd)
- 15 in
- Maximum Service Temperature °F
- 212 °F
- Maximum Shackle Diameter (mm/cm/m)
- 9.65 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Shackle Clearance - (mm/cm/m)
- 12.70 mm
- Rising Stem Knockout Hole Diameter (mm/cm/m)
- 76.2 mm
- Service Temperature Range °F
- -40 °F to 212 °F
- Size - W x H x D (mm)
- 101.10 x 346.20 x 101.10
- Valve Wheel Diameter (mm/cm/m)
- 178 - 330
ColorRed
Gate Valve Lockout TypeRotating
LanguageEnglish; French; Spanish
Primary Noun, Basic FunctionValve Lockout
Text LegendDANGER LOCKED OUT DO NOT REMOVE
Adhesive (Y/N)No
Lockout MaterialABS Plastic
SAP B-NumberLOTO-81
Diameter (in/ft/yd)15.0 in
Dimensions15.0 in Dia
Height (mm/cm/m)346.20 mm
Lockout Height (in/ft/yd)3.5 in
Maximum Service Temperature °C100 °C
Maximum Shackle Diameter (in/ft/yd)0.32 in
Minimum Service Temperature °C-40 °C
Minimum Shackle Clearance (in/ft/yd)0.5 in
Rising Stem Knockout Hole Diameter (in/ft/yd)3 in
Service Temperature Range °C-40 °C to 100 °C
Sign Size-General15.0 in Dia
Size - Width (mm)101.10 mm
Valve Wheel Diameter Range (in/ft/yd)7 to 13 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
