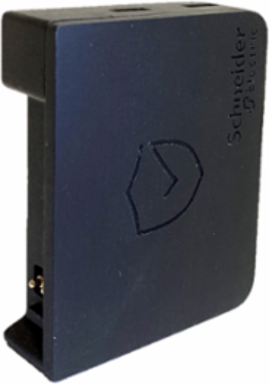

Schneider Electric ZBRZ1 Harmony XB5R Wireless Commissioning Module, 34.5 mm Height, 3 V Supply
- MPN: ZBRZ1
- PPN: SCH-ZBRZ1
CAD
$282.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Highest cybersecurity levels using ZBRZ1 tool Designed for industrial environment with proven robustness with Zigbee Green Power using ZBRZ1 tool Possibility to change frequency and highest cybersecurity level Suitable for the most demanding environments, depending on the model, up to IP 69, for external use from -40 to 70 °C Compatible with all XB5 & XB4 actuators(not suitable for safety applications) Possibility to change frequency and highest cybersecurity level Wireless and batteryless pushbuttons including a transmitter equipped with fixing collar a spring return pushbutton head with cap attached
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
Physical Attributes
| Cad Overall Depth | 12 mm |
|---|---|
| Cad Overall Width | 43.6 mm |
| Cad Overall Height | 34.5 mm |
|---|---|
| Embedding Depth | 42 mm |
Important Information Attributes
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3 |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.004417728, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0007470848, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2009013EN |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Device Short Name | XB5R |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XB5R |
| Sale Per Indivisible Quantity | 1 |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years. |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity Mix; AC; < 1kV; EU-27 |
| [Us] Rated Supply Voltage | 3 V with battery |
| Package Weight(Lbs) | 28.000 g |
| Warranty (In Months) | 18 |
| Certificate Agency | CSA, UL Listed, EAC |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0139837227 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.2558378667 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2049 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Kit Identifier | N |
| Mechanical Durability | 1000 cycles |
| Product Or Component Type | commissioning module |
| Returnability | Yes |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Pep Code | ENVPEP2009013EN |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; < 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8543709860 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 0.2749864021 |
| Circularity Profile | ENVEOLI2009013EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2009013EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | ZBRA1 - antenna V3.3 and above), ZBRN1 - wireless access point V3.32 and above), ZBRN2 - wireless access point V3.32 and above) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 5-35 °C |
| Environmental Disclosure | ENVPEP2009013EN |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 95-95 % 0-35 °C without condensation |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | commissioning module |
|---|
| Range Of Product | Harmony XB5R |
|---|
ETIM
| ETIM 8 | EC001358 |
|---|
| ETIM 9 | EC001358 |
|---|
