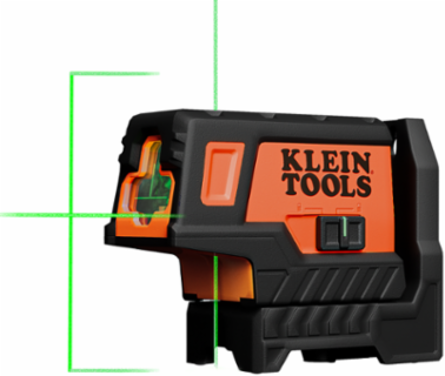

Klein Tools 93MCLPG Compact Green Cross-Line Laser Level with Plumb Spot
- MPN: 93MCLPG
- UPC: 092644930225
- PPN: KLT-93MCLPG
- UNSPSC: 27111802
CAD
$153.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

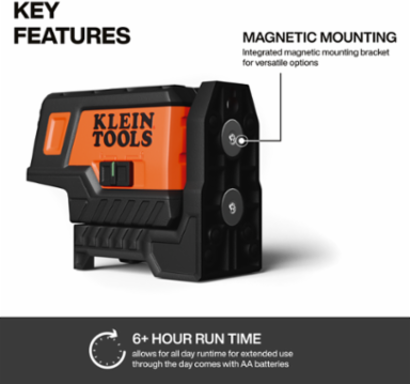

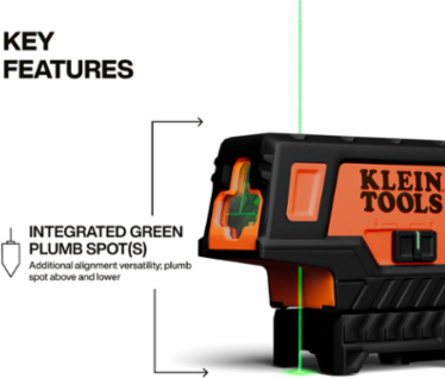

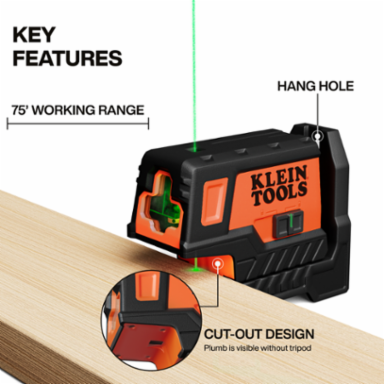

The Klein Tools Compact Cross Green Laser Level with Plumb Spot is perfect for precise alignment tasks. Its cut-out design allows easy positioning over metal tracks or 2 x 4's, ideal for construction. Bright green laser lines and a self-leveling pendulum ensure accuracy, while the green plumb spot adds versatility. Built tough with a magnetic bracket, it resists water and dust, making it reliable for demanding job sites.
Features

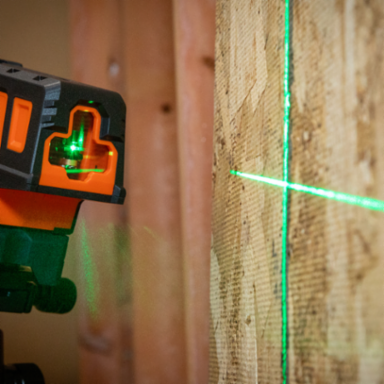

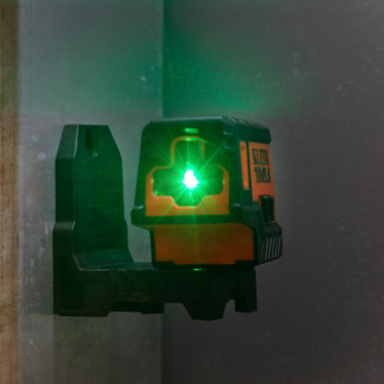

- Bright green lasers deliver highly visible lines and a plumb spot with a 75-Foot working range

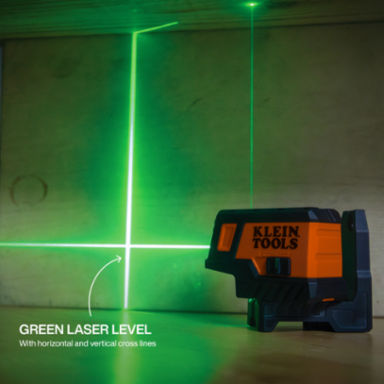

- Dual-line functionality projects both horizontal and vertical lines for versatile leveling and alignment

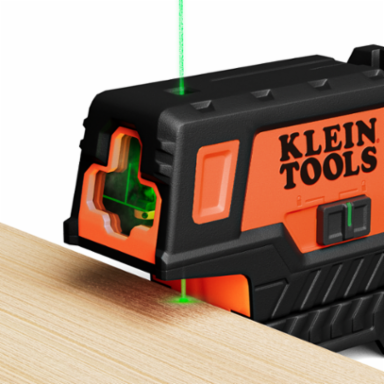

- Base cut-out allows for direct alignment on 2 x 4's or metal tracks without a tripod, providing flexible positioning for various job applications
- Laser class 2 and laser power output <1mW
- Compact, slim, and lightweight design fits tight spaces and stores easily in the included case
- Self-leveling laser indicator flashes when out of level to help maintain job accuracy
- Extended runtime with over 6 hours of battery life supports long work sessions without interruption
- Base Cut-Out
Documentation & Downloads
Specifications
Key Specifications
- Battery Life
- +6 Hours
- Low Battery Indicator
- Yes
- Included

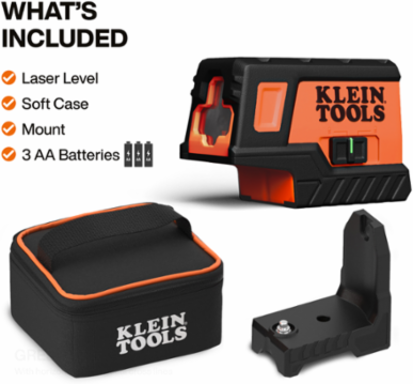

- Laser Level, Soft Carrying Case, Instruction Manual, 3 x AA 1.5V Alkaline Batteries
- Batteries
- 3xAA
- Plumb Laser
- Yes
- Receiver
- No
- Indoor Range
- 75' (22.8 m)
- Transit Locking Mechanism
- No
- Material
- Neodymium
- Type
- Self-Leveling Laser Level
- Magnet Type
- N40
- Number of Beams
- 4 (2 Plumb and 2 Crosslines)
- Drop Protection
- 3.3' (1 m)
- Laser mW
- <1mW
- Overall Length
- 7.4 cm (2.9 Inch)
- Maximum Distance
- 22.9 m (75 Feet)
- Height
- 2.2000 in
- Depth
- 4.4500 in
ApplicationSelf-Leveling Laser Alignment Tool
Ingress ProtectionIP54 - Water and Dust Resistant
Mounting TypeMagnets, 1/4-20 Tripod Thread, Hang Hole
Bag or CaseZipper Bag
Laser SafetyComplies with 21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
Out-of-Level IndicatorYes
Laser ColorGreen
DisplayNo
Pulse ModeNo
StandardConforms to EN61326-1:2013, EN60825-1:2014
Laser Wavelength508 - 530nm
Accuracy±3/16" per 33' (±5 mm per 10 m)
Low Battery AlarmNo
Laser Class2
Overall Height11.2 cm (4.4 Inch)
Overall Width2.2 Inch (5.6 cm)
Width2.9800 in
Weight0.6200 lbs
