Klein Tools 93PTL Red Pocket Laser Level, 30' Range, 1 Beam, 3-Axis Lighted Vials, Magnetic Mount
- MPN: 93PTL
- UPC: 092644930096
- PPN: KLT-93PTL
- UNSPSC: 27111802
CAD
$61.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

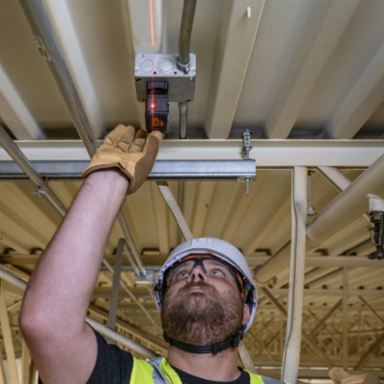

The Klein Tools Red Pocket Laser Level is a high-performance laser leveling and alignment tool for DIY'ers and professionals alike with a Class 2 laser (IEC/EN 60825-1:2014) with an output power of less than or equal to 1mW at 630-640nm. The powerful red laser line is easy to see in indoor lighting conditions and is perfect for applications like hanging pictures or shelving. The adjustable body and three-axis lighted bubble vials allow a user to project laser lines at any angle the user needs.
Features

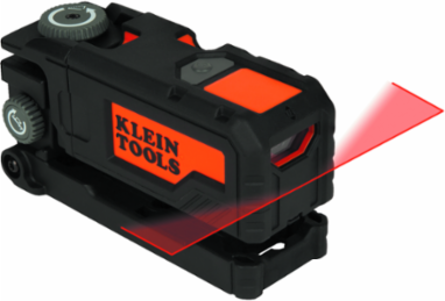

- Projects single red laser line up to 30 feet (9.1 m) indoors, providing ample coverage for a wide range of applications,optimized for indoor lighting conditions

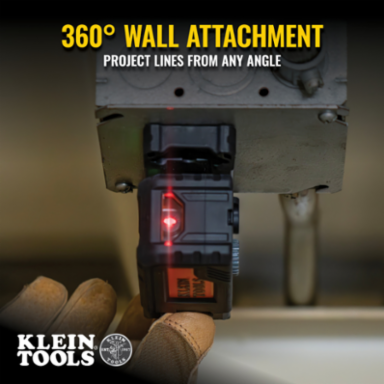

- Laser body has a 360-Degree rotation for projecting lines at any angle

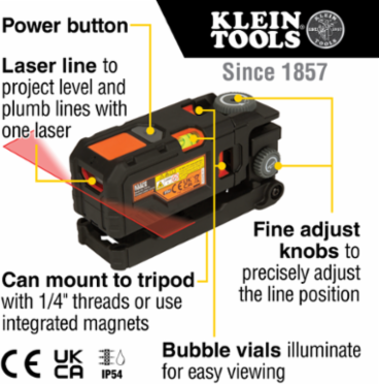

- Horizontal and vertical fine adjust knobs allow for easier precision adjustment of the laser line without having to move the unit

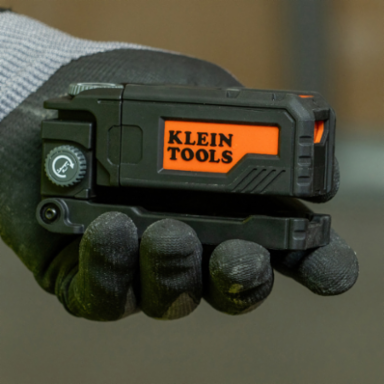

- Compact design is easy to use and transport at home, on the job, or anywhere in between

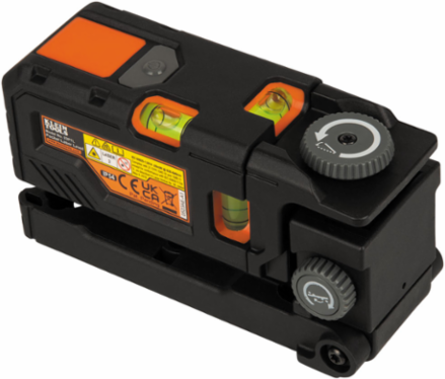

- 3-axis bubble vials illuminate for enhanced viewing and leveling

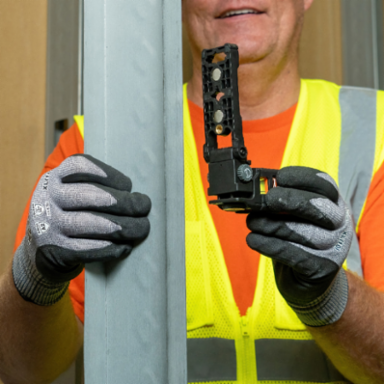

- Two powerful magnets, 1/4-Inch-20 thread tripod mounting, a hang hole, and built-in kickstand give a variety of mounting options
- Over 12-Hour runtime with 2 AAA alkaline batteries and low battery warning
- Embedded Kickstand, 3-Axis Vials, Fine Adjust Knobs
Documentation & Downloads
Specifications
Key Specifications
- Laser Wavelength
- 630-640nm
- Low Battery Indicator
- Yes
- Accuracy
- Vials; 0.043-Degree (0.75mm/1,000mm)
- Ingress Protection
- IP54
- Drop Protection
- 3' (1 m)
- Receiver
- No
- Batteries
- 2 x AAA
- Magnet Type
- Rare Earth - Neodymium
- Number of Vials
- 3
- Overall Height
- 2.3" (5.8 cm)
- Type
- User Adjustable Pocket Laser Level
- Transit Locking Mechanism
- No
- Pulse Mode
- No
- Mounting Type
- Magnetic Bracket
- Out-of-Level Indicator
- No
- Laser Class
- Class 2
- Overall Height (cm)
- 5.8
- Maximum Distance (m)
- 9.1
- Overall Width (Inch)
- 1.76
- Overall Width (cm)
- 4.5
- Maximum Distance (Feet)
- 30
- Width
- 1.7400 in
- Weight
- 0.4100 lbs
Laser ColorRed
Type of VialsLighted Bubble
ApplicationLeveling Alignment Tool
Number of Beams1
Battery Life12 hr
Bag or CaseNo
Laser SafetyIEC 60825-1 -2014/A11 -2021, EN 50689 -2021
Low Battery AlarmYes
IncludedBatteries, Manual
Indoor Range30' (9.1 m)
StandardComplies with 21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
MaterialResins, Elastomers, Metalic
Plumb LaserNo
DisplayNo
Laser mW≤ 1mW
Overall Length (cm)10.8
Overall Height (Inch)2.3
Weight (kg)0.2
Overall Length (Inch)4.27
Weight (lb)0.41
Height2.2600 in
Depth4.3000 in
