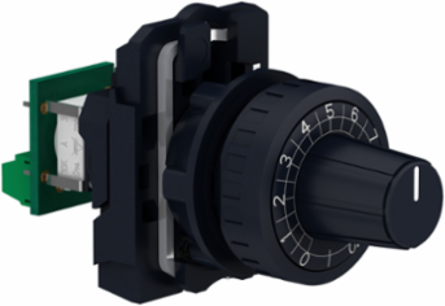

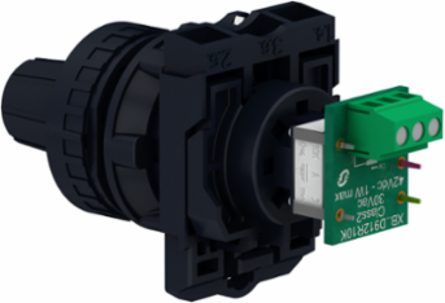

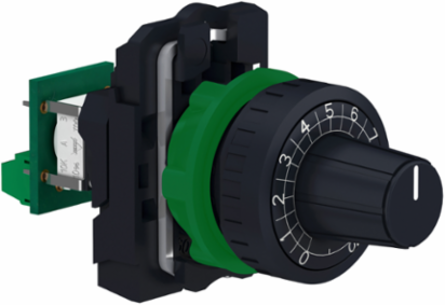

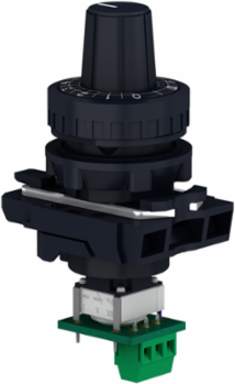

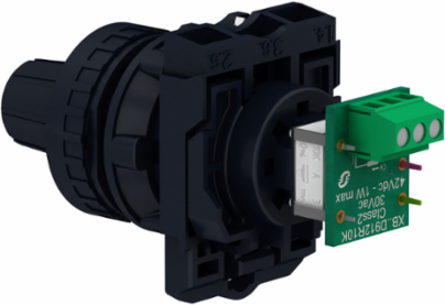

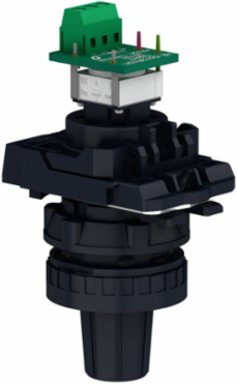

Schneider Electric XB5AD912R10K Harmony XB5 Potentiometer 22mm, 10k , IP66, Cermet, 50,000 Cycles
- MPN: XB5AD912R10K
- PPN: SCH-XB5AD912R10K
CAD
$70.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, 22mm diameter potentiometer has a resistance of 10kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
Features

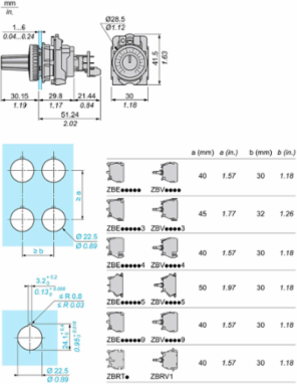

- This complete potentiometer features a standard 22 mm mounting diameter designed to fit effortlessly into your existing panel layouts. By fitting directly into standard infrastructure without the need for custom fabrication or enlarging existing holes, it minimizes installation time and ensures seamless physical integration with your existing Harmony XB5 setup.
- This unit provides a 10k Ohm linear resistance rated at 1W, making it the ideal external interface for regulating parameters like motor speed via the voltage or resistor inputs of variable speed drives (VSDs) and inverters.
- This unit is built to withstand punishing industrial washdown environments. It is certified to resist high-pressure water jets up to 7,000,000 Pa at 55 C, completely preventing moisture ingress and dust contamination in demanding food processing, chemical, or manufacturing facilities.
