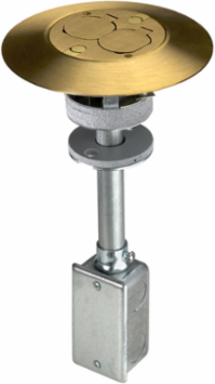

Complete 3 Inch Fire-Rated Poke-Through with 20A Duplex, Brass Finish
Hubbell Premise Wiring

Hubbell Premise Wiring PT7IGFSDBRSA Complete 3 Inch Fire-Rated Poke-Through with 20A Duplex, Brass Finish

  • MPN: PT7IGFSDBRSA
  • UPC: 783585494234
  • PPN: HBL-PT7IGFSDBRSA
  • UNSPSC: 39121328

CAD

$1074.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

In-Floor Delivery Systems, Fire-Rated Poke-Throughs, Flush Duplex Series, Complete Unit With 20A IG Duplex, (2) 1/2" Diameter Holes for Low Voltage Wiring, Brass Finish

Features

  • Complete 3" Fire-Rated Poke-Through
  • Prewired 20A IG Duplex Receptacle
  • (2) 1/2" Diameter Holes for Low Voltage Wiring
  • Non-metallic Cover with Painted Aluminum Flange
  • Includes Junction Box

Specifications

Key Specifications

Country of Origin
United States
Core Hole
3 Inch
Industry Standard(s)
cULus Listed;Meets ADA Standards;UL 514A Listed
Number of Outlet
(1) 20A Duplex IG Receptacle and (2) 1/2" Diameter Holes for Low Voltage Wiring
Number Of Outlets
(1) 20A Duplex IG Receptacle and (2) 1/2" Diameter Holes for Low Voltage Wiring
Description - Invoice
FLUSH FRPT IG 20A DUP/TELE/DATA, BRS
Harmonization Code
8536698000
MSDS Flag
No
Material - Mounting Hardware
Step-Down Installation
BOX SIZE
(in)
Each - Pack Description
Each
NAICS Code
3359326106
Application - For Use OnCarpet
Width9.300 in
Plate StyleData/Duplex
StandardcULus Listed;Meets ADA Standards;UL 514A Listed
StyleFRPT - Complete Kits
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberPT7IGFBRS
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585494234
Lowest Level UOMEach

Certifications

EU RoHS Indicator
No
