Aluminum Tin-Plated Straight Splice 2 Inch, AL-CU #4, Oxide Inhibitor, ANSI C119.4

Documentation & Downloads

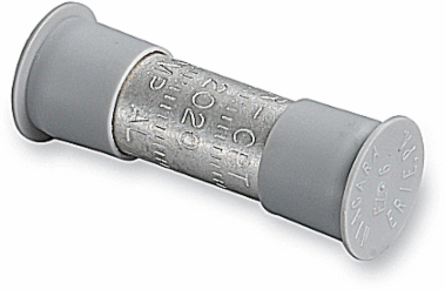

Blackburn SG 44 Aluminum Tin-Plated Straight Splice 2 Inch, AL-CU #4, Oxide Inhibitor, ANSI C119.4

MPN: SG 44
UPC: 078378675168
PPN: T-B-SG 44

CAD

$15.50

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Aluminum Tin-Plated Straight Splices - 5/8 common die series, wire size A: 4, wire size B: 4, conductor A: AL-CU, conductor B: AL-CU

Features

Made of Aluminum for High Strength and High Conductivity.
Solid Center Stop Ensures Accurate Wire Positioning and Forces Oxide Inhibitor Over and Through Conductor Strands.
Tin Plated to Resist Corrosion and Extend Shelf Life.
Prefilled with Oxide Inhibitor to Improve Contact and Seal Out Moisture After Installation.
Color-Coded End Caps Seal Splices from Contaminants.
All Splices Marked with Conductor Sizes, Die References and Compression Locations for Easy Identification and Installation.
Meets or Exceeds ANSI C119.4 Specifications.

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: Solid Center Stop assures accurate positioning and forces oxide inhibitor over and through conductor strands. Made from Aluminum which provides high strength and high conductivity. Prefilled with Oxide Inhibitor to Improve Contact and Seal out Moisture. Color Coded End Caps Seal Splices from Contaminants. All Splices marked with Conductor Sizes, Die References and Compression Locations for Easy Identification and Installation.

Size: Length 2 inches

Conductor Range: Side A - Aluminum/Copper #4, Side B Aluminum/Copper #4

Material: Aluminum

Insulation: None

IGCC4669 Wire or cable compression splice

TypeAluminum Tin-Plated Straight Splice

StandardANSI C119.4

ConnectionCompression/Crimp

Number Of Conductors2

FinishTin-Plated

Packaging

Outer Quantity: 100

Weight Uom: 0.06 lbs. Each

Outer Dimensions (inches)7.5x6x7
