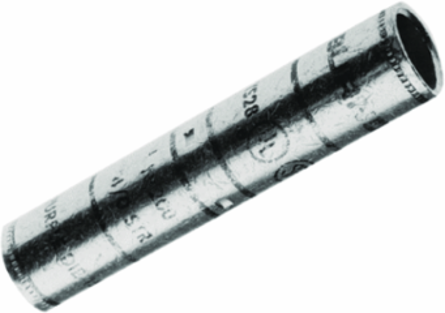

Burndy YS34 Copper Compression Splice, 500 kcmil, 4.91 Inch Length, Long Barrel, Tin Plated
- MPN: YS34
- UPC: 781810508503
- PPN: BUR-502850
CAD
$114.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Splice, 500 kcmil, 4.91" Splice Length, Long Barrel, Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 2.20 in
- Dimension - Length Overall inch
- 4.91 in
Dimension - L Length Overall mm125 mm
Dimension - Strip Length inch2-1/4
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL486A-UL486B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL486A-486B
UL ListedYes
Conductor Related
- Conductor - Copper Str Size
- 500 kcmil
General
- Application
- For Heavy Duty Applications And Used At Higher Voltages Up To 35 KV
- Connector Type
- Splice
- Feature - Barrel Type
- Long
- Plated
- Y
- Sub Brand
- HYLINK
- Type
- YS, Long Barrel
- UPC 12 Digit
- 7818105085033
Color CodeBrown
Feature - Barrel StyleChamfered
MaterialCopper
Plating TypeTin - Electro Plated
Trade NameHYLINK™
UPC781810508503
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
