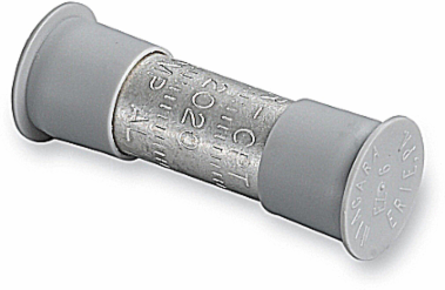

Blackburn SG 68 Aluminum Tin-Plated Straight Splice
- MPN: SG 68
- UPC: 783786778386
- PPN: T-B-SG 68
CAD
$36.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Tin-Plated Straight Splices - 5/8 common die series, wire size A: 6, wire size B: 8, conductor A: AL-CU, conductor B: AL-CU
Features
- Made of Aluminum for High Strength and High Conductivity.
- Solid Center Stop Ensures Accurate Wire Positioning and Forces Oxide Inhibitor Over and Through Conductor Strands.
- Tin Plated to Resist Corrosion and Extend Shelf Life.
- Prefilled with Oxide Inhibitor to Improve Contact and Seal Out Moisture After Installation.
- Color-Coded End Caps Seal Splices from Contaminants.
- All Splices Marked with Conductor Sizes, Die References and Compression Locations for Easy Identification and Installation.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| Brand Name | Blackburn |
| Special Features | Solid Center Stop assures accurate positioning and forces oxide inhibitor over and through conductor strands. Made from Aluminum which provides high strength and high conductivity. Prefilled with Oxide Inhibitor to Improve Contact and Seal out Moisture. Color Coded End Caps Seal Splices from Contaminants. All Splices marked with Conductor Sizes, Die References and Compression Locations for Easy Identification and Installation. |
| Size | Length 2 inches |
| Conductor Range | Side A - Aluminum/Copper #6, Side B Aluminum/Copper #8 |
| Material | Aluminum |
| Insulation | None |
| IGCC | 4669 Wire or cable compression splice |
|---|---|
| Type | Aluminum Tin-Plated Straight Splice |
| Standard | ANSI C119.4 |
| Connection | Compression/Crimp |
| Number Of Conductors | 2 |
| Finish | Tin-Plated |
Packaging
| Outer Quantity | 100 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 7.5x6x6.5 |
|---|
