Blackburn ATC 500 R 350 TN Tapered Reducer Splice
- MPN: ATC 500 R 350 TN
- UPC: 783786697533
- PPN: T-B-ATC 500 R 350 TN
CAD
$244.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

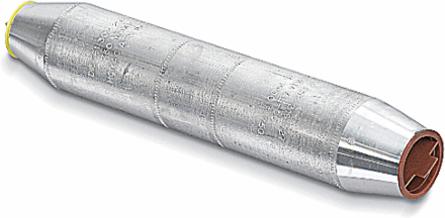

Tin-Plated Aluminum Tapered Compression Reducer for Aluminum and Copper Conductors, 500 to 350 KCMIL
Features
- Solid Center Stop Ensures Proper Cable Insertion, Prevents Moisture Migration.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
- All Splices Marked with Conductor Sizes and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Solid center stop ensures proper cable insertion. Dual rated for use with Aluminum and Copper Conductors. All Splices marked with die references for easy installation. Connector bores coated with oxide inhibitor to prevent oxidation. |
| Standard | ANSI C119.4 |
| Conductor Range | 500 to 350 kcmil |
| Finish | Bare |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Tapered Reducer Splice |
| Application | Tapered ends enable use in High-Voltage Applications up to 69kV. |
| Size | 5-5/8 inch long |
| Material | Aluminum |
| Insulation | No |
Packaging
| Outer Quantity | 25 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
