Aluminum Compression Lug, Concentric 4/0, 6.375 Inch Length, Tin Plated

Documentation & Downloads

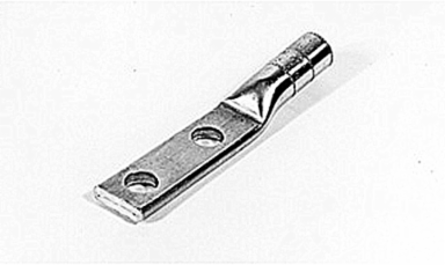

Blackburn AL 4/0 NTN 45 Aluminum Compression Lug, Concentric 4/0, 6.375 Inch Length, Tin Plated

MPN: AL 4/0 NTN 45
UPC: 783786069484
PPN: T-B-AL 4/0 NTN 45

CAD

$87.63

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Aluminum Tin-Plated Two-Hole NEMA Lugs - 45 degree lug, concentric 4/0, installing dies TX,71H,298,840,11A. Unbent length 6.375, Barrel 1.938 inches, Pad 3.719 inch x 1.195 inch wide x .310 inch thick

Features

Dual-Rated for Use with Aluminum and Copper Conductors.
Made of Aluminum for High Strength and High Conductivity.
Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
All Lugs Marked with Conductor Size and Die References for Easy Identification.
Meets or Exceeds ANSI C119.4 Specifications.

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121448 Wire or cable compression connector

Brand Name: Blackburn

Special Features: Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.

Standard: ANSI C119.4

Conductor Range: concentric 4/0

Finish: Tin Plated

Temperature Rating: 90 Degrees Celsius

IGCC4668 Wire or cable compression connector

TypeCompression Lug

ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations

SizeUnbent length 6.375, Barrel 1.938 inches, Pad 3.719 inch x 1.195 inch wide x .310 inch thick

MaterialAluminum

InsulationNo

Bolt Size1/2 inch

Packaging

Outer Quantity: 50

Weight Uom: 0.26 lbs. Each

Outer Dimensions (inches)13.18x7.75x7
