Burndy

Burndy YCP28L20CTN Compression pulling grips, accommodating 4/0 AWG TO 2/0 AWG Copper and Aluminum Wire, 20" lanyard length.

Compression pulling grips, accommodating 4/0 AWG TO 2/0 AWG Copper and Aluminum Wire, 20" lanyard length.
  • MPN: YCP28L20CTN
  • UPC: 621945647084
  • PPN: BUR-501206727

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$42.38/ EA

Description

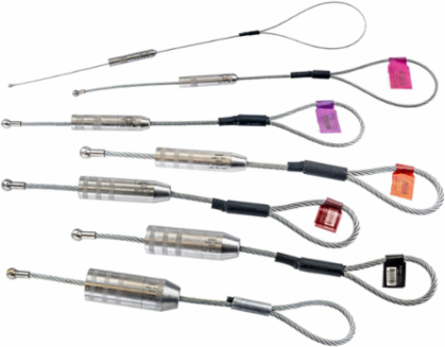

Compression pulling grips are wire range taking accommodating copper code, copper flex, and aluminum code wire. Each pulling grip comes comes in a unique lanyard length for wire staggering to prevent bunching during a pull. See sales drawing and or SOMI for maximum pull load requirements.

Features

  • Range-taking, only 7 compression pulling heads required to pull #8 AWG through 1000 kcmil wire
  • Easy to install with 444S or 644 Series of dieless installation tools
  • Parallel installation, pulling heads available in multiple lanyard lengths for staggering when pulling multiple wires
  • Knurl crimp bands on barrels clearly indicate the proper crimp zone location
  • Each lanyard has a protective sleeve for comfort and safety
  • UPC tag affixed to each part for ease of identification and ordering

Specifications

Specifications

Conductor - AL Str Size
4/0 AWG-2/0 AWG
Conductor - Copper Str Size
4/0 AWG-2/0 AWG
Country of Origin
CN
Product Type
CABLE PULL
Conductor Type
CODE/FLEX
Wire Size
4/0 AWG-2/0 AWG
Freight Class Code
16027000
Image Actual Or Representative
A
Material
STEEL
BOX SIZE
0.000x0.000x0.000 (in)
Carton - Number of Sub Packs
54
Carton - SCC-14 Next Lower Level Sub Pack
00621945647084
Case - SCC-14 Next Lower Level Sub Pack
30621945647085
Package Quantity
6 EA
Pallet Height
45.500 in
Pallet Weight
275.832 lb.
Conductor - Copper Str Compact Size4/0 AWG-2/0 AWG
Conductor - MaterialALUMINUM / COPPER
Description - SlangGrips
Conductor Size4/0 AWG-2/0 AWG
Connector TypePULLING HEAD
Class CodeB55
Harmonization Code7326200090
Sub Class CodeB55BJUF
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units54
Package - GTIN - Package30621945647085
Pallet - GTIN - Package70621945647083
Pallet Length48.000 in
Pallet Width40.000 in
