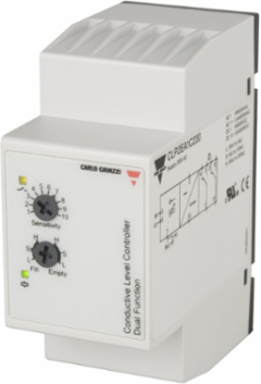

Carlo Gavazzi CLP2EA1C115 Conductive Level Controller, 2 x DPDT Relay Output, 115VAC, IP20, 35.5x81x60.2mm
- MPN: CLP2EA1C115
- PPN: CLG-CLP2EA1C115
CAD
$346.07
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Conductive Level Controller, 2 x DPDT Relay Output, 115VAC, IP20, 35.5x81x60.2mm
Documentation & Downloads
Specifications
Additional
- Output
- 2 x 8A DPDT Relay
- Power Supply
- 115 VAC
- Small Inductive Load Rating
- 0.4 A / 250 VAC
- Sensitivity Adjustment
- 250 a9 to 500 Ka9
- Max. permitted off-delay time
- 1 s
- Mechanical Life
- 30 x 106 operations
- Level Probe Supply
- Max. 5 VAC
- Operating Frequency (Relay Output)
- 0.5 Hz
- Operating Temperature Range
- -20 to +50 C
- Depth
- 60.2 mm
- Width
- 35.5 mm
- Connection Type
- Plug-in connection
- Degree of protection (IP)
- IP20
- Sensing Principle
- Conductive
Rated Operational Voltage98 to 132 VAC, 45 to 65 Hz
Relay Rating8 A / 250 VAC (Resistive)
Rated Operational Power5 VA
Delay on Operate< 300 ms
Min. adjustable off-delay time1 s
Electrical Life (AC1)> 250,000 operations
Level Probe CurrentMax. 2 mA
Response Time1 s (ON and OFF)
Storage Temperature Range-50 to +85 C
Height81 mm
Weight125 g
Housing MaterialNORYL PPO (DIN rail version), ABS VO (plug version)
With approval according to ULYes
