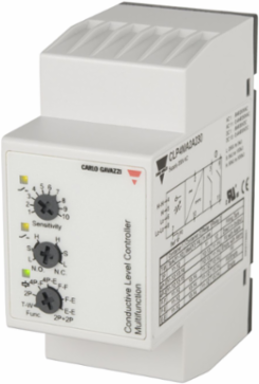

Carlo Gavazzi CLP4MA2A115 Conductive Level Controller, Sensitivity 250 Ohm-500 Kohm, IP20, 2 x SPST Output
- MPN: CLP4MA2A115
- PPN: CLG-CLP4MA2A115
CAD
$444.64
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Conductive Level Controller, Sensitivity 250 Ohm-500 Kohm, IP20, 2 x SPST Output
Documentation & Downloads
Specifications
Additional
| Rated Operational Voltage | 98-132 VAC, 50/60 Hz |
|---|---|
| Relay Rating Resistive Load AC1 | 8 A / 250 VAC |
| Delay on Operate | < 300 ms |
| Storage Temperature Range | -50 to +85 °C |
| Height | 81 mm |
| Weight | 125 g |
| Number of Loops | 4 |
| Housing Material | Plastic (NORYL PPO), Light Grey |
| UL Approval | UL Listed, cULus, CSA, CE Marked |
| Voltage Type for Actuating | AC |
| Product Family | Sensors - Level Sensors |
| Max Permitted Off-Delay Time | 1 s |
| Output Contacts | 1 SPST Normally Open |
|---|---|
| Relay Rating Resistive Load DC1 | 1 A / 250 VDC |
| Operating Temperature Range | -20 to +50 °C |
| Depth | 60.2 mm |
| Width | 35.5 mm |
| Sensitivity | Min 1 , Max 1 |
| Sensing Principle | Conductive |
| Degree of Protection | IP20 |
| Level Detection | Yes |
| Connection Type | Plug-in Connection |
| Number of Contacts Normally Open | 1 |
