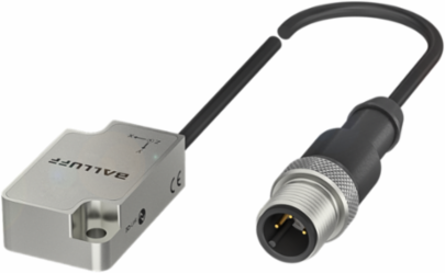

Balluff BCM R15E-001-DI00-01,5-S4 Condition Monitoring Sensors with multi-function - BCM0001
Balluff BCM R15E-001-DI00-01,5-S4 Condition Monitoring Sensors with multi-function - BCM0001
- MPN: BCM R15E-001-DI00-01,5-S4
- PPN: BAL-BCM0001
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$693.48/ EA
Description
Condition Monitoring Sensors with multi-function - BCM0001
Specifications
Specifications
- Country of Origin
- Hungary
- Vibration frequency range
- 2...3200 Hz
- Vibration velocity, measuring range v-RMS
- 0…220 mm/s @79.4 Hz
- Contact temperature, measuring range
- 0…70 °C
- Interface
- IO-Link 1.1
- Connection
- Cable with connector, M12x1-Male, 3-pin, 1.5 m, PUR
- IP rating
- IP67, IP68, IP69K
FunctionVibration Velocity; Vibration Acceleration; Vibration Severity Zone; Contact Temperature; Sensor Self-Awareness
Vibration, measuring axes3
Vibration acceleration, measuring range a-RMS0…16 g
Rated operating voltage Ue DC24 V
Interface setting optionFlexible process data configuration; Vibration measurement based on ISO 10816-3; Data preprocessing (statistics); Events (pre-alarms and main alarms); Delay times for alarms; Search function with LED display (ping)
Housing material1.4404 stainless steel
Ambient temperature0...70 °C
