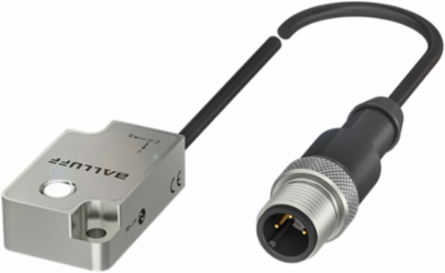

Balluff BCM R15E-002-DI00-01,5-S4 Condition Monitoring Sensors IP67, Vibration & Temperature Measurement
Balluff BCM R15E-002-DI00-01,5-S4 Condition Monitoring Sensors IP67, Vibration & Temperature Measurement
- MPN: BCM R15E-002-DI00-01,5-S4
- PPN: BAL-BCM0002
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$693.48/ EA
Description
The Balluff BCM R15E-002-DI00-01,5-S4 Condition Monitoring Sensor is designed to deliver precise vibration measurements while ensuring durability and reliability in challenging environments. With an IP67 rating, this sensor is well-suited for industrial applications, capable of operating within a temperature range of 0 to 70°C and measuring vibration across multiple axes. It features advanced data processing capabilities, including alarm configurations and a user-friendly LED display for real-time monitoring, making it an essential tool for predictive maintenance and operational efficiency. Crafted from robust stainless steel, this sensor is built to withstand harsh conditions, providing accurate readings of vibration velocity, acceleration, and environmental factors such as humidity and ambient pressure.
Specifications
Specifications
- Country of Origin
- Hungary
- Vibration frequency range
- 2...3200 Hz
- Vibration velocity, measuring range v-RMS
- 0…220 mm/s @79.4 Hz
- Contact temperature, measuring range
- 0…70 °C
- Ambient pressure, measuring range
- 300…1100 hPa
- Interface
- IO-Link 1.1
- Connection
- Cable with connector, M12x1-Male, 3-pin, 1.5 m, PUR
- IP rating
- IP67
FunctionVibration Velocity; Vibration Acceleration; Vibration Severity Zone; Contact Temperature; Relative Humidity; Ambient Pressure; Sensor Self-Awareness
Vibration, measuring axes3
Vibration acceleration, measuring range a-RMS0…16 g
Relative humidity, measuring range5...95 %rF
Rated operating voltage Ue DC24 V
Interface setting optionFlexible process data configuration; Vibration measurement based on ISO 10816-3; Data preprocessing (statistics); Events (pre-alarms and main alarms); Delay times for alarms; Search function with LED display (ping)
Housing material1.4404 stainless steel, Membrane: ePTFE with nylon fleece
Ambient temperature0...70 °C
