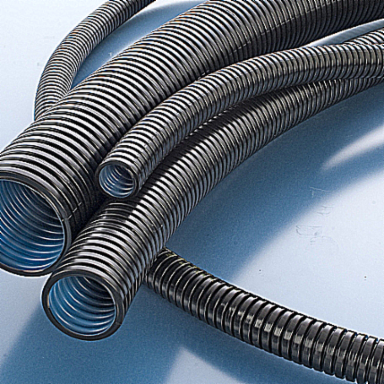

PMA XPCLG-17SB.50 Medium Wall Conduit
PMA XPCLG-17SB.50 Medium Wall Conduit
- MPN: XPCLG-17SB.50
- PPN: T-B-XPCLG-17SB.50
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$514.48/ EA
Description
Coarse Profile Three Layer Corrugated Medium-Wall Highly Flexible Conduit, (XPCL) Material - Outer Layer - Polyamide 6, Intermediate Layer - Bonding Compound, Inner Layer - Polyethylene Color - Outer Layer - Gray, Inner Layer - Yellow, Conduit Size NW - 17, 50 Meters
Features
- Very long life time, 15 to 20 years for standard applications
- Easy cable insertion, low friction inner layer
- Impermeable to water and steam
- Excellent flexibility
- Good mechanical strength even at low temperatures and low humidity
- Self-extinguishing
- Free from halogens and cadmium
- Renewable Energy
- In machine building and equipment with high requirements
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 20.9mm
- Material
- Other
- Operating temperature
- -50 - +105°C
- UV resistant
- Y
- Sheathing material
- Polyamide
- Lengthwise slotted
- N
- Halogen free
- Y
- Approved according to UR
- Y
- Approved according to LUL/British Standard
- N
- Approved according to UTAC
- N
- Approved according to NF F 16-101
- N
Nominal diameter20mm
Inner diameter15.6mm
Compressive strength150N
Fire resistance in accordance with UL94V2
ColourGrey
Bending strengthFlexible
Closable (two-part)N
Approved according to DIN EN 61386-23N
Approved according to CSAY
Approved according to Lloyd's Register TAN
Approved according to DIN 5510N
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- PMA
- Application
- Machine
- Length
- 50 m
- Material
- Outer Layer Polyamide 6, Inner Layer Polyethylene
IGCC5535 Electrical conduit
TypeMedium Wall Conduit
Trade SizeNW17
FlexibilityHighly Flexible
ColorGray
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 47.244x31.496x30.709
Outer Quantity14
Weight Uom0.09 lbs. Each
