PMA POHG-17B.50 Medium Wall Conduit
- MPN: POHG-17B.50
- UPC: 078620996829
- PPN: T-B-POHG-17B.50
CAD
$589.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

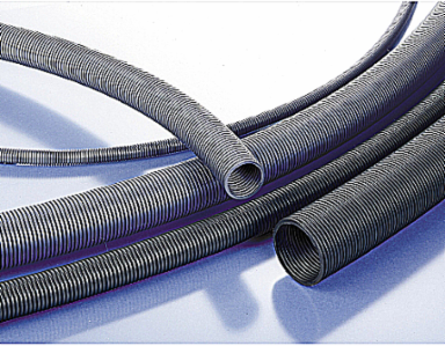

Very Flexible Medium Duty Conduit, Conduit Size NW/Metric 17/20, 50 Meters, Black
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- PMA
- Application
- For Applications with the Highest Fire Safety Performance Requirements
- Length
- 50 m
- Material
- Specially Modified Polyolefin
IGCC5535 Electrical conduit
TypeMedium Wall Conduit
Trade SizeNW17
FlexibilityVery Flexible
ColorBlack
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 21.2mm
- Material
- Polypropylene
- Operating temperature
- -25 - +95°C
- UV resistant
- Y
- Sheathing material
- Not sheathed
- Lengthwise slotted
- N
- Halogen free
- Y
- Approved according to UR
- N
- Approved according to LUL/British Standard
- N
- Approved according to UTAC
- N
- Approved according to NF F 16-101
- N
Nominal diameter20mm
Inner diameter15.7mm
Compressive strength140N
Fire resistance in accordance with UL94V0
ColourBlack
Bending strengthFlexible
Closable (two-part)N
Approved according to DIN EN 61386-23N
Approved according to CSAN
Approved according to Lloyd's Register TAN
Approved according to DIN 5510N
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 47.244x31.496x29.528
Outer Quantity14
Weight Uom0.08 lbs. Each
