PMA PACOF-07B.50 Divisible Conduit
PMA PACOF-07B.50 Divisible Conduit
- MPN: PACOF-07B.50
- PPN: T-B-PACOF-07B.50
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$539.02/ EA
Description

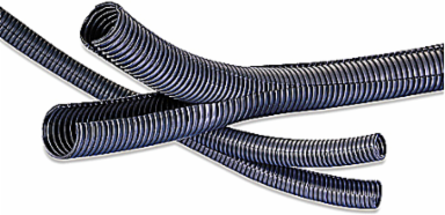

Divisible Flexible Black Conduit, (PACOF) Material - Polyamide 6, Conduit Size NW - 07, 50 Meters
Features
- Can be opened and closed again in longitudinal directional any time
- PMA standard nominal widths can be used in combination with all PMA fittings
- Easy installation
- Trouble-free retrofitting
- Self-extinguishing
- Free from halogens and cadmium
- Vehicle Building
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 10mm
- Material
- Polyamide 6
- Operating temperature
- -40 - +105°C
- UV resistant
- Y
- Sheathing material
- Not sheathed
- Lengthwise slotted
- N
- Halogen free
- Y
- Approved according to UR
- N
- Approved according to LUL/British Standard
- N
- Approved according to UTAC
- N
- Approved according to NF F 16-101
- N
Nominal diameter10mm
Inner diameter5.6mm
Compressive strength180N
Fire resistance in accordance with UL94V0
ColourBlack
Bending strengthFlexible
Closable (two-part)Y
Approved according to DIN EN 61386-23N
Approved according to CSAN
Approved according to Lloyd's Register TAN
Approved according to DIN 5510N
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 47.244x31.496x30.709
Outer Quantity60
Weight Uom3.28 lbs. Each
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- PMA
- Application
- Machine
- Length
- 50 m
- Material
- Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeDivisible Conduit
Trade SizeNW07
FlexibilityMedium Flexibility
ColorBlack
