PMA PACOF-10B.50 Divisible Conduit
- MPN: PACOF-10B.50
- UPC: 786209997951
- PPN: T-B-PACOF-10B.50
CAD
$614.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

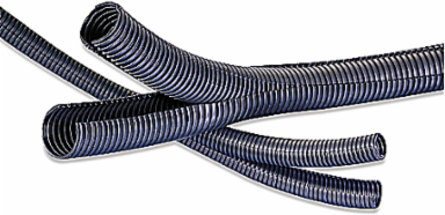

Divisible Flexible Black Conduit, (PACOF) Material - Polyamide 6, Conduit Size NW - 10, 50 Meters
Features
- Can be opened and closed again in longitudinal directional any time
- PMA standard nominal widths can be used in combination with all PMA fittings
- Easy installation
- Trouble-free retrofitting
- Self-extinguishing
- Free from halogens and cadmium
- Vehicle Building
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Machine |
| Length | 50 m |
| Material | Polyamide/Nylon 6 |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Divisible Conduit |
| Trade Size | NW10 |
| Flexibility | Medium Flexibility |
| Color | Black |
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 12.8mm |
| Material | Polyamide 6 |
| Operating temperature | -40 - +105°C |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | N |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
| Nominal diameter | 12mm |
|---|---|
| Inner diameter | 8.5mm |
| Compressive strength | 180N |
| Fire resistance in accordance with UL94 | V0 |
| Colour | Black |
| Bending strength | Flexible |
| Closable (two-part) | Y |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | N |
| Approved according to Lloyd's Register TA | N |
| Approved according to DIN 5510 | N |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 47.244x31.496x30.709 |
| Outer Quantity | 36 |
|---|---|
| Weight Uom | 4.92 lbs. Each |
