Adaptaflex AT16/050/CS90/BLY Conduit Fitting with NPT Threads
- MPN: AT16/050/CS90/BLY
- UPC: 786210282107
- PPN: T-B-AT16/050/CS90/BLY
CAD
$38.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

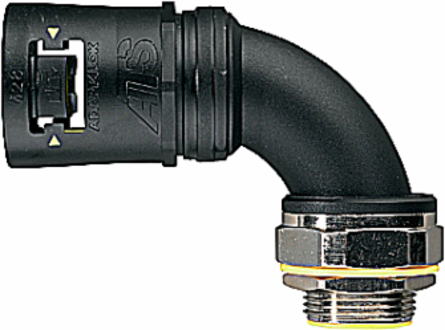

Adaptalok ATS, 90 Degree Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 16mm, 1/2 Inch NPT Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE, Black with Yellow Elastomer
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 90 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with NPT Threads
SizeNC 16mm
ColorBlack/Yellow Elastomer
Cable Entry1/2 Inch NPT Thread
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.09 lbs. Each
Outer Dimensions (inches)1x1x1
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- Y
- Type of connection
- Snap connection
- Thread connection size
- Other
- Material
- Polyamide
- Approved in combination with protective conduit UR
- N
Nominal diameter16mm
Model90°-elbow
Construction typeExternal thread
Thread typeNPT
Thread length12.7mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
