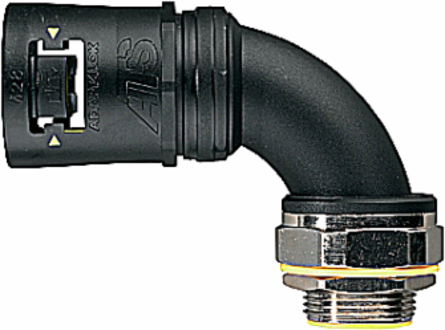

Adaptaflex AT28/075/CS90/BLY Conduit Fitting with NPT Threads
- MPN: AT28/075/CS90/BLY
- UPC: 786210283036
- PPN: T-B-AT28/075/CS90/BLY
CAD
$95.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adaptalok ATS, 90 Degree Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 28mm, 3/4 Inch NPT Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE, Black with Yellow Elastomer
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | 90 Degree |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with NPT Threads |
| Size | NC 28mm |
| Color | Black/Yellow Elastomer |
| Cable Entry | 3/4 Inch NPT Thread |
Packaging
| Inner Quantity | 10 |
|---|---|
| Outer Dimensions (inches) | 14x14x6 |
| Outer Quantity | 80 |
|---|---|
| Weight Uom | 0.2 lbs. Each |
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | Y |
| Type of connection | Snap connection |
| Thread connection size | Other |
| Material | Polyamide |
| Approved in combination with protective conduit UR | N |
| Nominal diameter | 28mm |
|---|---|
| Model | 90°-elbow |
| Construction type | External thread |
| Thread type | NPT |
| Thread length | 13.5mm |
| Colour | Black |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
