PMA PUEG-56B.30 Medium Wall Conduit
- MPN: PUEG-56B.30
- UPC: 786209968739
- PPN: T-B-PUEG-56B.30
CAD
$4059.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

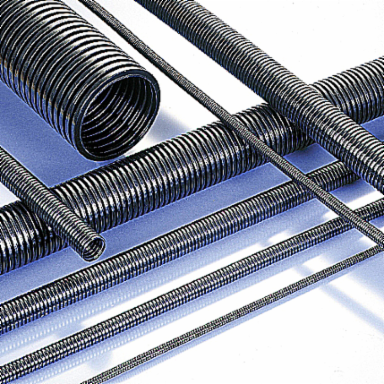

Highly Flexible, Medium Wall Black Conduit, (PUE) Material - Polyurethane, Conduit Size NW - 56, 30 Meters
Features
- Highest flexibility
- Excellent chafing characteristics
- Free from halogens and cadmium
- For dynamic applications in robotics and automation
Specifications
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 67.2mm |
| Material | Other |
| Operating temperature | -60 - +50°C |
| UV resistant | Y |
| Colour | Black |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | N |
| Approved according to Lloyd's Register TA | N |
| Approved according to DIN 5510 | N |
| Nominal diameter | 68mm |
|---|---|
| Inner diameter | 56.3mm |
| Compressive strength | 70N |
| Fire resistance in accordance with UL94 | HB |
| Oil resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | N |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 45.669x45.669x26.378 |
| Outer Quantity | 3 |
|---|---|
| Weight Uom | 0.4 lbs. Each |
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Robotic |
| Outside Diameter | 2.65 Inch |
| Flexibility | Very Flexible |
| Color | Black |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Medium Wall Conduit |
| Trade Size | NW56 |
| Length | 30 m |
| Material | Polyurethane |
