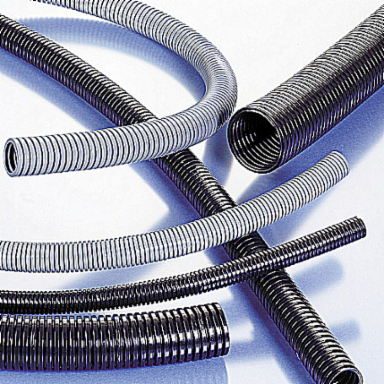

PMA PIHG-56S.30 Heavy Duty Conduit
- MPN: PIHG-56S.30
- UPC: 786209967794
- PPN: T-B-PIHG-56S.30
CAD
$3122.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Highly Flexible, Heavy Wall Gray Conduit, (PIH) Material - Polyamide 12, Conduit Size NW - 56, 30 Meters
Features
- Excellent resistance to ultra violet (UV) rays and atmospheric corrosion
- Excellent flexibility
- Good mechanical strength at low temperatures and dry conditions
- Self-extinguishing
- Robotic
- For dynamic applications in robotics and automation
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Machine |
| Outside Diameter | 2.65 Inch |
| Flexibility | Highly Flexible |
| Color | Gray |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Heavy Duty Conduit |
| Trade Size | NW56 |
| Length | 30 m |
| Material | Polyamide/Nylon 12 |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 45.669x45.669x26.378 |
| Outer Quantity | 3 |
|---|---|
| Weight Uom | 0.22 lbs. Each |
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 67.2mm |
| Material | Polyamide 12 |
| Operating temperature | -50 - +95°C |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | Y |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
| Nominal diameter | 68mm |
|---|---|
| Inner diameter | 56.3mm |
| Compressive strength | 175N |
| Fire resistance in accordance with UL94 | V0 |
| Colour | Grey |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | N |
| Approved according to Lloyd's Register TA | N |
| Approved according to DIN 5510 | N |
