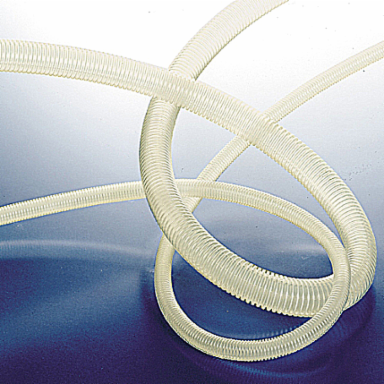

PMA PVDT-12P.50 Medium Wall Conduit
- MPN: PVDT-12P.50
- UPC: 786209968876
- PPN: T-B-PVDT-12P.50
CAD
$1504.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Medium Wall, Pliable, High Stiffness Conduit, (PVD) Material - Polyvinylidene Fluoride (PVDF), Conduit Size NW - 12, 50 Meters
Features
- Excellent chemical resistance also at high temperatures
- Excellent UV-resistance
- Very good abrasion resistance
- High stiffness
- Self-extinguishing
- Free from halogens and cadmium
- Machine building applications with long-term high temperature requirements
- Chemical
- Food industry
Specifications
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 15.5mm |
| Material | Other |
| Operating temperature | -60 - +150°C |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | N |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
| Nominal diameter | 16mm |
|---|---|
| Inner diameter | 11.8mm |
| Compressive strength | 300N |
| Fire resistance in accordance with UL94 | V0 |
| Colour | Natural colour |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | N |
| Approved according to Lloyd's Register TA | N |
| Approved according to DIN 5510 | N |
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Renewable Energy |
| Length | 50 m |
| Material | PVDF |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Medium Wall Conduit |
| Trade Size | NW12 |
| Flexibility | Pliable |
| Color | Natural |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 47.244x31.496x29.528 |
| Outer Quantity | 20 |
|---|---|
| Weight Uom | 0.08 lbs. Each |
