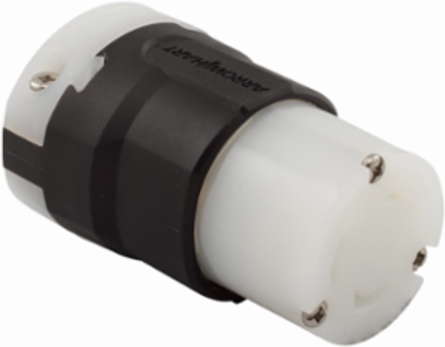

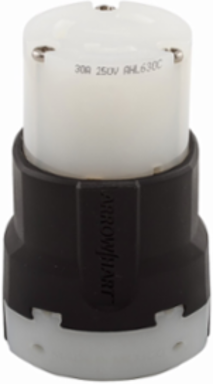

Eaton AHL630C Eaton Arrow Hart ultra grip locking connector, #16-8 AWG, 30A, Industrial, 250V, Back wiring, Black, white, Ultra grip, L6-30, Two-pole, Three-wire, Nylon
- MPN: AHL630C
- UPC: 032664738463
- PPN: COW-CWL630C-M
CAD
$38.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart ultra grip locking connector, #16-8 AWG, 30A, Industrial, 250V, Back wiring, Black, white, Ultra grip, L6-30, Two-pole, Three-wire, Nylon
Documentation & Downloads
Specifications
Material Specifications
| Color | White |
|---|---|
| Face/body material | Nylon |
| Contact material | Brass |
|---|---|
| Material | Nylon |
Electrical Ratings
| Amperage Rating | 30A |
|---|---|
| Number Of Poles | Two-pole |
| Voltage rating | 250 V |
| NEMA configuration | L6-30 |
|---|---|
| Number of wires | Grounding |
General
| Application | Industrial |
|---|---|
| Device grade | Extra heavy-duty industrial specification grade |
| Type | Locking connector |
| Design type | Ultra grip |
|---|---|
| Special features | Locking receptacle |
Installation Specifications
| Cord diameter | 0.38-1 in (9.5 mm-25.4 mm) |
|---|---|
| Wiring method | Back |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
|---|
