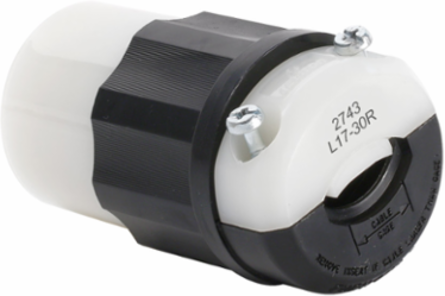

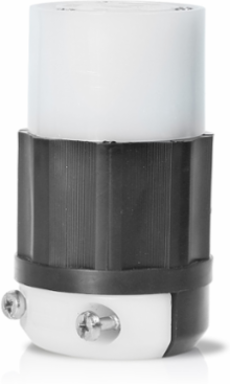

Leviton 2743 Locking Connector 30 Amp 600 Volt NEMA L17-30R Black & White, 3-Phase
- MPN: 2743
- UPC: 078477808474
- PPN: LEV-2743
CAD
$59.84
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

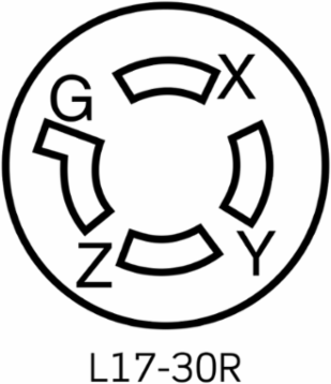

30 Amp, 600 Volt 3-Phase, NEMA L17-30R, 3P, 4W, Locking Connector, Industrial Grade, Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Phase
- 3-Phase
- Wires
- 4
- Wire Gauge
- 14-8 AWG
- Dielectric Voltage
- Withstands 2000 V per UL498
- Device Type
- Locking Connector
- Cord Clamp Material
- Nylon
- Assembly Screws Material
- Steel, Zinc Plated
- Wire Module Material
- Nylon
- Flammability Rating
- UL94 HB or better
- NEMA Standard
- WD-6
- UL Certification
- UL498, File E13393
- NOM Certification
- NOM 057
- Grounding
- Grounding
- Terminal Accommodation
- 18-10 AWG
- Color
- Black-White
- Brand
- Black and White
Voltage600 VAC
Poles3
Torque Range10-14 in-lbs
Temperature Range-40°C to 60°C
Current InterruptingCertified for full rated current
Clamp Insert MaterialNylon
Terminal Screws MaterialBrass
Blades/Contacts MaterialSolid Brass
Body MaterialImpact Modified Nylon
EnvironmentDry
CSA CertificationCSA C22.2 No. 42, File LR-406
ANSI StandardANSI C-73
RoHS CompliantFalse
Cord Range.595 - 1.150 in.
Terminal IdentificationBrass-Hot, Green-Ground, Silver-Neutral
Country of OriginMexico
