Schneider Electric TSXCDP103 Modicon Premium Connecting Cable 1 m AWG 22 for sub-base ABE7H16R20
- MPN: TSXCDP103
- PPN: SCH-TSXCDP103
CAD
$131.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

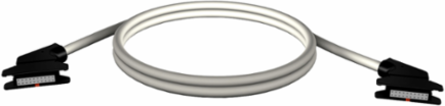

This connecting cable from Schneider Electric is designed to ensure seamless communication between your Modicon Premium controllers and their respective sub-bases, specifically the ABE7H16R20. With a length of 1 meter and a wire gauge of AWG 22, it provides a reliable and robust connection for your automation and control systems. Perfectly suited for PLC, HMI, and data acquisition applications, this cable not only enhances system performance but also facilitates efficient data transfer, making it an essential component for optimally functioning wiring systems in industrial environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Slovakia, Tunisia, United States |
|---|
Physical Attributes
| Cable Length | 1 m |
|---|
Important Information Attributes
| Electrical Connection | 1 connector HE10, 20 ways module side, 1 connector HE10, 20 ways PLC side |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.4329339842347783 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 2.422441254832351 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2024 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Awg Gauge | 22 AWG |
| Range Of Product | Modicon Premium |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 3 kg CO2 eq. |
| Pep Code | ENVPEP1312013_V2 |
| Pep Verification Date | 2026-01-11 |
| Psr Version | PSR-0001-ed4-EN-2022 11 16 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | connecting cable |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544429090 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.08008877077758912, 0.1 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.3246769661591741, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.1482067149677826 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Wire Section | 0.324 mm² |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To transmit encoder signals over a distance of 1 meter during 10 years at a 100% use rate. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Germany, DE |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; China, CN |
| Recyclability Potential In % | 30 |
| Accessory / Separate Part Destination | sub-base ABE7H16R20 |
| Accessory / Separate Part Designation | connecting cable |
| Package Weight(Lbs) | 190.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Product Compatibility | TSXCTY2A, TSXCFY21, TSXCTY2C, TSXCTY4A, TSXCCY1128, TSXCFY11, TSXCAY |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 3.4083476909716754 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1312013_V2 |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1312013_V2 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-01-11 |
| Psr Version | PSR-0001-ed4-EN-2022 11 16 |
General Attributes
| Range Of Product | Modicon Premium |
|---|
ETIM
| ETIM 8 | EC000237 |
|---|
| ETIM 9 | EC000237 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
