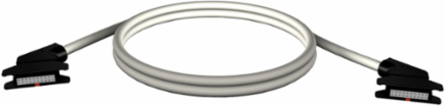

Schneider Electric TSXCDP503 connecting cable - Modicon Premium - 5 m - for sub-base ABE7H16R20
- MPN: TSXCDP503
- PPN: SCH-TSXCDP503
CAD
$243.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
connecting cable - Modicon Premium - 5 m - for sub-base ABE7H16R20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Slovakia, Tunisia, United States
Physical Attributes
- Cable Length
- 5 m
Important Information Attributes
- Electrical Connection
- 1 connector HE10, 20 ways module side, 1 connector HE10, 20 ways PLC side
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 0.9799519237746671
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.483228516005659
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2024
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Awg Gauge
- 22 AWG
- Range Of Product
- Modicon Premium
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 8 kg CO2 eq.
- Pep Code
- ENVPEP1312013_V2
- Pep Verification Date
- 2026-01-11
- Psr Version
- PSR-0001-ed4-EN-2022 11 16
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Accessory / Separate Part Category
- connection accessories
- Accessory / Separate Part Type
- connecting cable
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8544429090
Carbon Footprint Of The Distribution Phase [A4]0.18128201493575916, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.7349107004278602, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.1482067149677826
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingNo
Wire Section0.324 mm²
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo transmit encoder signals over a distance of 1 meter during 10 years at a 100% use rate.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential In %30
Accessory / Separate Part Destinationsub-base ABE7H16R20
Accessory / Separate Part Designationconnecting cable
Package Weight(Lbs)730.000 g
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- TSXCFY21, TSXCTY4A, TSXCTY2A, TSXCCY1128, TSXCAY, TSXCFY11, TSXCTY2C
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 7.527579870111728
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1312013_V2
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1312013_V2
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-01-11
Psr VersionPSR-0001-ed4-EN-2022 11 16
General Attributes
- Range Of Product
- Modicon Premium
ETIM
- ETIM 8
- EC000237
ETIM 9EC000237
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
