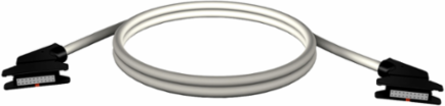

Schneider Electric TSXCDP303 Modicon Premium Connecting Cable 3 Meter AWG 22 for ABE7H16R20

MPN: TSXCDP303
PPN: SCH-TSXCDP303
UNSPSC: 32151703

$163.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for seamless connectivity within automation systems, the Modicon Premium Connecting Cable from Schneider Electric is tailored specifically for use with the ABE7H16R20. This 3-meter cable, made with AWG 22 specifications, ensures reliable signal transmission and compatibility with various control environments. Ideal for enhancing communication between components, it plays a crucial role in optimizing the efficiency and performance of your automation and control applications. With Schneider Electric's commitment to quality, this connecting cable is a dependable choice for professionals seeking robust wiring solutions in PLC, HMI, and data acquisition setups.

Features

3-meter cable for Modicon Premium systems
Designed for sub-base ABE7H16R20 connection
Easy installation for quick setup
Ensures reliable signal transmission

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Tunisia

Weight	410 g

Physical Attributes

Cable Length	3 m

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Electrical Connection	1 connector HE10, 20 ways module side, 1 connector HE10, 20 ways PLC side
Carbon Footprint Of The End Of Life Phase C1 To C4	0.6 kg CO2 eq., 0.5996720727576321
Carbon Footprint Of The Manufacturing Phase A1 To A3	3 kg CO2 eq., 3.3554084948691343
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2024
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard
Market Segmentation	Industrial
Awg Gauge	22 AWG
Range Of Product	Modicon Premium
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	5 kg CO2 eq.
Database Version	2024-01
Accessory / Separate Part Category	connection accessories
Accessory / Separate Part Type	connecting cable
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To transmit encoder signals over a distance of 1 meter during 10 years at a 100% use rate.
Functional Unit Unit	unit
Recyclability Potential In %	30

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The Distribution Phase A4	0.11093377033382276, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.44972147339615326, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.1 kg CO2 eq., 0.1482067149677826
Local Publishable Date	2026-02-24
Device Type	PLC System - PLC Component
Traceability	No
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	4
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Sustainable Packaging	No
Wire Section	0.324 mm²
Data Source	extrapolated product
Accessory / Separate Part Destination	sub-base ABE7H16R20
Accessory / Separate Part Designation	connecting cable
Customs Code	8544429090
Packaging Weight In G	41
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Product Compatibility	TSXCTY4A, TSXCFY21, TSXCTY2C, TSXCAY, TSXCCY1128, TSXCFY11, TSXCTY2A
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	4.663942526324525
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1312013_V2
Pcr Version	PCR-4-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP1312013_V2
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-01-11
Psr Version	PSR-0001-ed4-EN-2022 11 16
