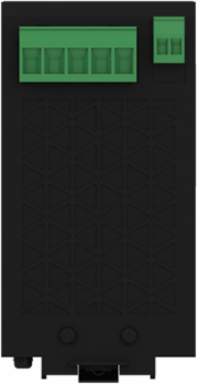

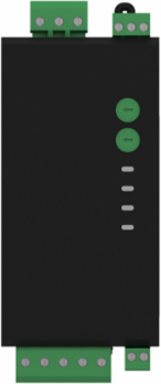

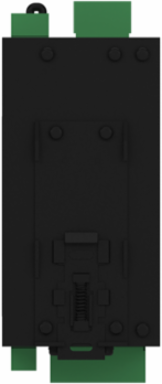

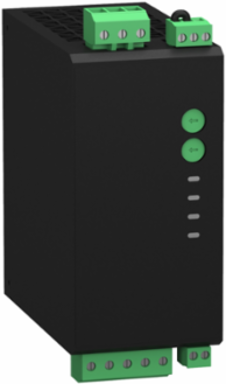

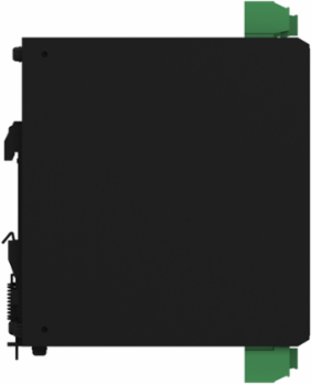

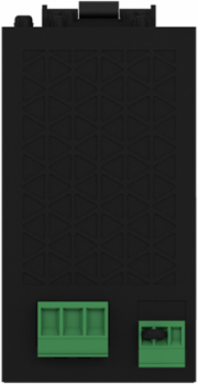

Schneider Electric LXMMCACMD02S100 connection module, Lexium MC12, 20A, continuous power
- MPN: LXMMCACMD02S100
- PPN: SCH-LXMMCACMD02S100
CAD
$1008.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

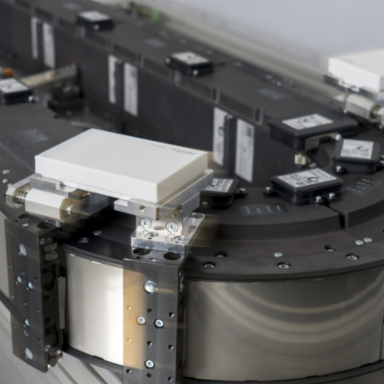

The connection module is part of Lexium MC12 multi carrier range, a modular transportation system. This connection module provides the internal DC Bus and power supply on tracks. It provides 20A of continuous power to the track. It is installed between two segments. This is an accessory for supplying power to tracks. This modular system is for machine applications and consists of long stator motors, on which multiple carrier units can be moved independently from each other. This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE. To create a transportation system, associate long stator motor segments, Guide rails, carriers, communication/power interconnects and cables. The connection module installs on track, between two long stator segments, to connect to power supply. Next generation transport system with unprecedented simplicity in installation and commissioning. Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes.
