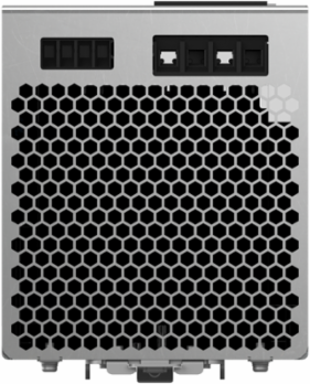

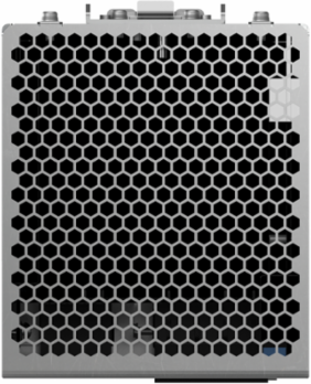

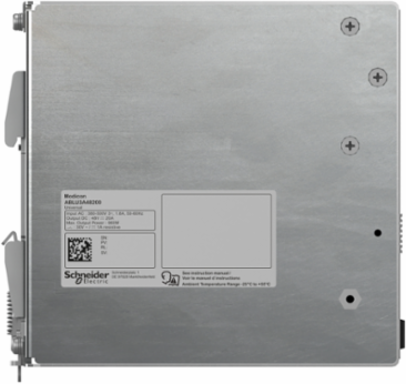

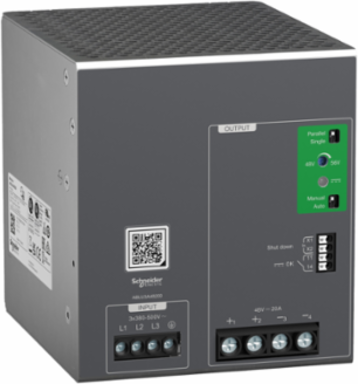

Schneider Electric ABLU3A48200 Regulated Power Supply, 380...500V AC, 48V, 20A, 3 phases, Universal
Schneider Electric ABLU3A48200 Regulated Power Supply, 380...500V AC, 48V, 20A, 3 phases, Universal
- MPN: ABLU3A48200
- PPN: SCH-ABLU3A48200
- UNSPSC: 39121004
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1028.51/ EA
Description
Regulated Power Supply, 380...500V AC, 48V, 20A, 3 phases, Universal
Features
- One of the most compact on the market
- Up to +70°C ambiant temperature
- Manual or Automatic reset in case of output overload or short circuit
- Power reserve allowing to deliver a current of 150% its nominal rating for a short time
- Remote On/Off Switch to control the power supply output using an external signal switch
- Direct access to the documentation and serial number thanks to QR code
- Control backup battery charging and backup supply to ensure the longest battery life-time
- Better control over industrial infrastructure
Specifications
Conformance Attributes
- Product Certifications
- CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KC, UKCA, cURus
StandardsIEC 62368-1, EN/IEC 61204-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 61000-3-2, EN 61000-3-3, UL 62368-1, CSA C22.2 No 62368-1, CSA C22.2 No. 107.1
Complementary Attributes
- Maximum Leakage Current
- 2 mA 500 V AC
Rated Power In W960 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- < 1.9 A 380 V AC, < 1.9 A 380 V AC, < 1.9 A 380 V AC, < 1.7 A 500 V AC, < 1.7 A 500 V AC, < 1.7 A 500 V AC, < 1.9 A 380 V AC, < 1.9 A 380 V AC, < 1.9 A 380 V AC, < 1.7 A 500 V AC, < 1.7 A 500 V AC, < 1.9 A 380 V AC, < 1.9 A 380 V AC, < 1.9 A 380 V AC, < 1.7 A 500 V AC, < 1.7 A 500 V AC, < 1.7 A 500 V AC, < 1.9 A 380 V AC, < 1.9 A 380 V AC, < 1.9 A 380 V AC, < 1.7 A 500 V AC, < 1.7 A 500 V AC
- Earthing System
- TN, TT, IT
- Electromagnetic Compatibility
- immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
- Holding Time
- > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 500 V AC, > 20 ms 500 V AC, > 20 ms 500 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 500 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 500 V AC, > 20 ms 500 V AC, > 20 ms 500 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 380 V AC, > 20 ms 500 V AC
- Line And Load Regulation
- < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.17 % network 100 % load in line at 25 °C, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, < 0.6 % +/- 0.5 % network 100 % load at 25 °C for single mode, 4 % network 150 % load at 25 °C for parallel mode

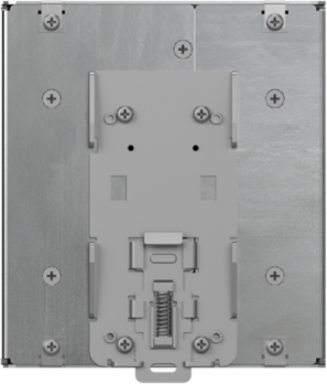

- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
- Power Factor
- 0.90 at 380 V AC, 0.90 at 500 V AC
- Response Time
- < 2 s, < 2 s
- Vibration Resistance
- 3.5 mm (f= 3-11.9 Hz) conforming to IEC 60068-2-6, 20 m/s² (f= 11.9-150 Hz) conforming to IEC 60068-2-6

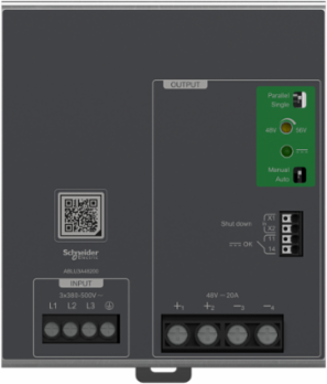

- Connections Terminals
- screw connection 4 x 10 mm², AWG 12...AWG 8) with wire end ferrule output, screw connection 4...16 mm², AWG 12...AWG 6) without wire end ferrule output, screw connection 0.75…6 mm², AWG 18...AWG 10) without wire end ferrule input, screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input, cage clamp 0.2...1.5 mm², AWG 22...AWG 16) without wire end ferrule diagnostic relay, cage clamp 0.2...1.5 mm², AWG 22...AWG 16) without wire end ferrule shut down input, cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule diagnostic relay
- Connections Terminals3
- screw connection 4 x 10 mm², AWG 12...AWG 8) with wire end ferrule output, screw connection 4...16 mm², AWG 12...AWG 6) without wire end ferrule output, screw connection 0.75…6 mm², AWG 18...AWG 10) without wire end ferrule input, screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input, cage clamp 0.2...1.5 mm², AWG 22...AWG 16) without wire end ferrule diagnostic relay, cage clamp 0.2...1.5 mm², AWG 22...AWG 16) without wire end ferrule shut down input, cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule diagnostic relay, cage clamp 0.2...0.75 mm², AWG 22...AWG 18) with wire end ferrule shut down input
- Local Publishable Date
- 2026-01-12
- Serviceability
- No
- Field Service Division
- IDIBS
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2212024EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Efficiency At Full Load
- 320...575 V AC 3 phase
- Enclosure Material
- metal
- Network Frequency Limits
- 50-60 Hz
- Permissible Temporary Current Boost
- 1.5 x In for 5 seconds)
- Power Supply Type
- regulated switch mode
- Product Or Component Type
- power supply
- Relay Type
- electromechanical relay 1000.0 mA 30 V
- Service Life
- 10 year(s) 40 °C 80 % load
- Status Led
- 1 LED (green and red) product status
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Country Of Origin 6
- US
- Product Kit Identifier
- N

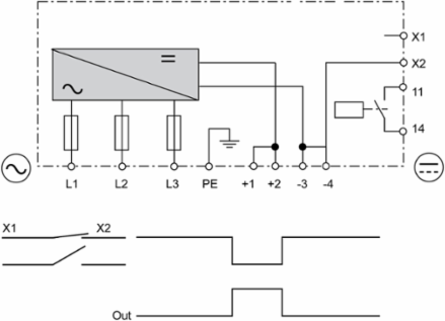

- Remote Control Type
- non isolated input, dry contact 0.3 4
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Dielectric Strength4000 V AC with input to output, 2000 V AC with input to ground, 1500 V AC with output to ground, 4000 V AC with input to diagnostic relay, 500 V AC with output to diagnostic relay, 1500 V AC with diagnostic relay to ground, 4000 V AC with shutdown input to input, 1500 V AC with shutdown input to ground, with shutdown input not isolated from output
Efficiency95 % 380 V AC, 95 % 500 V AC
Electromagnetic Emissionconducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
Inrush Current35 A 380 V, 35 A 500 V
MarkingCE, UKCA
Overvoltage CategoryIII, II
Residual Ripple< 200 mV, < 200 mV
SupplySELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Meantime Between Failure Mtbf2912400 h at 25 °C, full load conforming to SR 332, 382500 h at 55 °C, 80 % load conforming to SR 332
Meantime Between Failure Mtbf3912400 h at 25 °C, full load conforming to SR 332, 382500 h at 55 °C, 80 % load conforming to SR 332
Local Data StatusPublishable
Device TypePLC System - PLC Component
TraceabilityYes
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Market SegmentationIndustrial
Electrical Shock Protection Classclass I
Load Capacitance200000 µF
Package Weight Lbs3.000 kg
Power Dissipation In W49 W
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon Power Supply
ReturnabilityYes
Shock Resistance150 m/s² 11 ms
Sustainable PackagingNo
Medium DescRegulated Power Supply, 380...500V AC, 48V, 20A, 3 phases, Universal
Stocking FlagN
Pep CodeENVPEP2212024EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Circularity Profile
- ENVEOLI2212024EN
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2212024EN
Ambient Air Temperature For Operation-25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -25-55 °C without current derating mounting position A < 6561.68 ft (2000 m), 55-70 °C with current derating of 3.3 % per °C mounting position A < 6561.68 ft (2000 m)
Operating Altitude< 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, < 5000 m overvoltage category III, overvoltage category II
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2212024EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power supply
Range Of ProductModicon Power Supply
Output Attributes
- Output Protection Type
- against overload and short-circuits, protection technology: manual or automatic reset by switch, against over temperature, protection technology: automatic reset, against overvoltage, protection technology: manual reset
- Output Voltage
- 48 V DC
- Power Supply Output Current
- 20 A
Output Couplingsingle/parallel by switch
Output Voltage Limits48…56 V
Input Attributes
- Efficiency
- 95 % 380 V AC, 95 % 500 V AC
- Efficiency At Full Load
- 320...575 V AC 3 phase
Input Protection Typeintegrated fuse (not interchangeable) 3.15 A, external protection (recommended)
Input Voltage380...500 V AC three phase
Specifications
- Country of Origin
- India, Thailand

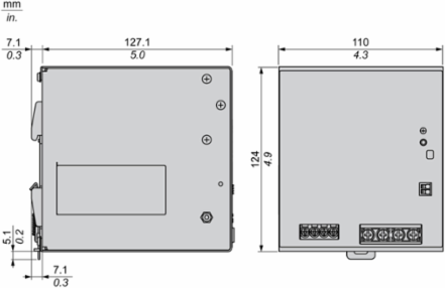

Depth128.7 mm
