Schneider Electric TMAT4CSET Modicon M241 Connector Set with 8 Removable Connectors
- MPN: TMAT4CSET
- PPN: SCH-TMAT4CSET
CAD
$101.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

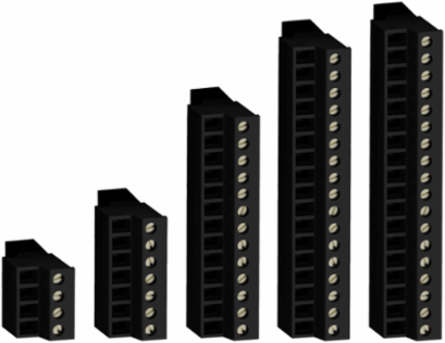

connector set for M241 - IO This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This connector set is dedicated to Modicon M241 logic controllers. It is composed of 8 removable connectors with screw terminals to connect to the serial line, to the I/O and to the CANopen bus. It weighs 0.127kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. The pack of this set contains 1 terminal block connector and 7 Molex connectors.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany, France, Indonesia |
|---|
Important Information Attributes
| Electrical Connection | removable screw terminal block for connection to the CANopen bus, Molex removable screw terminals for serial communication, Molex removable screw terminals for inputs/outputs |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2017 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Number Of Connectors | 1 terminal block7 Molex |
| Product Or Component Type | terminal block |
| Sustainable Packaging | No |
| Accessory / Separate Part Destination | Modicon M241 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | screw terminal block |
| Package Weight(Lbs) | 140.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | logic controller |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | terminal block |
|---|
ETIM
| ETIM 8 | EC002021 |
|---|
| ETIM 9 | EC002021 |
|---|
