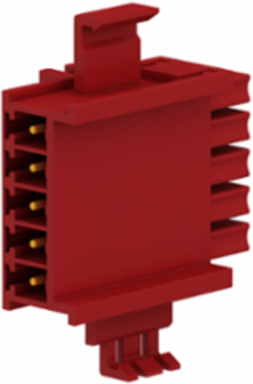

Schneider Electric XPSMCMCN0000SG Modicon MCM Backplane Expansion Connector, 1 Male + 1 Female 5-Pin
- MPN: XPSMCMCN0000SG
- PPN: SCH-XPSMCMCN0000SG
CAD
$64.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Modicon MCM backplane expansion connector is used to connect the various expansion modules to the safety controller CPU. This backplane connector provides a safe communication between safe expansion components and the safety controller CPU. its connectors are 1 male + 1 female connectors, 5-pin for rear panel plug-in connector. It weighs 0.01kg. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. This single backplane expansion connector is compatible with the expansion modules and the safety controllers CPU. The backplane expansion connector instals Omega 35 mm DIN rail conforming to IEC 60715. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Features
- This single backplane expansion connector is engineered specifically for the Schneider Electric Modicon MCM modular safety controller range, ensuring direct physical and electrical synchronization. It establishes a seamless data bridge between your main controller CPU and various safe extension modules, accommodating scalable system architectures from 8 inputs up to 128 inputs without requiring custom communication wiring.
- Featuring a dedicated 5-pin configuration with 1 male and 1 female rear panel plug-in connector, the unit forms a physical backbone directly behind the modules. This proprietary design allows you to snap expansion modules onto a standard Omega 35 mm DIN rail (conforming to IEC 60715) while instantly securing the internal communication bus, drastically reducing assembly time and eliminating point-to-point field wiring errors.
- Weighing just 0.01 kg (18.0 g package weight) with ultra-compact dimensions, this backplane connector fits entirely within the footprint of the modular device tracking. By utilizing the rear panel channel for inter-module communication, it maximizes horizontal rail density, allowing automation engineers to pack extensive safety I/O logic into highly confined control enclosures.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Argentina, Brazil, Germany, Spain, France, Italy, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Mounting Support | omega 35 mm DIN rail IEC 60715 |
| Quantity Per Set | 1 |
| Returnability | Yes |
| Accessory / Separate Part Category | expansion bus connector |
| Accessory / Separate Part Type | backplane expansion bus connector |
| Package Weight(Lbs) | 20.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Publishable Date | 2026-04-30 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2104 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Electrical Connection | 1 male + 1 female connectors - 5-pin rear panel plug-in connector |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Preventa Safety automation |
| Sustainable Packaging | No |
| Accessory / Separate Part Destination | for modular device |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| Product Compatibility | logic controller, extension modules |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Range Of Product | Preventa Safety automation |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
