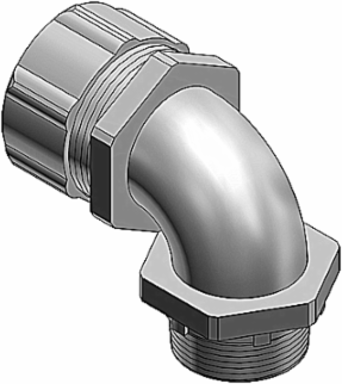

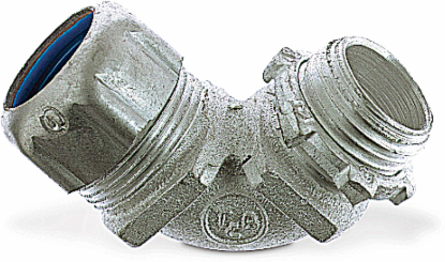

Thomas & Betts 5255AL Connectors-90 Degree
- MPN: 5255AL
- UPC: 786210802572
- PPN: T-B-5255AL
CAD
$107.56
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-1/4 Inch 90 Degree Aluminum Liquidtight Connector, Non-insulated
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121420 Liquid tight connectors |
|---|---|
| Brand Name | T&B |
| Application | High-quality, corrosion-resistant, liquidtight termination for LTA flexible aluminum conduit. |
| Size | 1-1/4 Inch |
| Finish | Zinc Plating/Clear Chromate |
| IGCC | 4585 Liquid tight connectors |
|---|---|
| Type | Connectors-90 Degree |
| Standard | UL E23018, CSA |
| Material | Aluminum |
European Specifications (ETIM)
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Model | 90°-elbow |
| Construction type | External thread |
| Thread type | NPT |
| One-piece | N |
| Surface protection | Zinc coated |
| Approved in combination with protective conduit CSA | Y |
| Nominal size in inch | 1 1/4 inch |
|---|---|
| Revolving thread | N |
| Connection type screw connection to housing | Thread |
| Thread connection size | Other |
| Material housing | Other |
| Thread length | 20.63mm |
| Approved in combination with protective conduit UL | Y |
Packaging
| Inner Quantity | 5 |
|---|---|
| Outer Quantity | 25 |
| Weight Uom | 50.38 lbs. per 100 |
| Inner Dimensions (inches) | 8x5x4 |
|---|---|
| Outer Dimensions (inches) | 26.7x8.39x4.5 |
