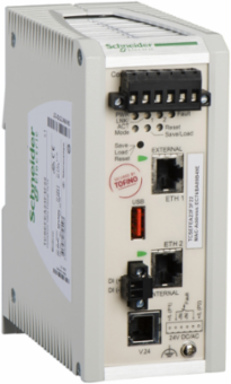

Schneider Electric TCSEFEC23FCF21 firewall, Modicon Networking, Industial Firewall, 1 port for copper, 1 port for fiber optic multimode
Schneider Electric TCSEFEC23FCF21 firewall, Modicon Networking, Industial Firewall, 1 port for copper, 1 port for fiber optic multimode
- MPN: TCSEFEC23FCF21
- PPN: SCH-TCSEFEC23FCF21
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2268.40/ EA
Description
This product is part of the Modicon Networking range, an offer of Industrial Firewall/Router. This device comes with Ethernet TCP/IP protocol. It comes with 1 copper cable transmission port and 1 port for multi-mode fiber optic. It provides secure connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 8.3W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 60mm (width) x 145mm (height) x 125mm (depth) and weighs 0.61 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM, DNV certified and conforms to UL 508, EN/IEC 61131 and EN/IEC 60950 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, external memory removed
- Alarm Output
- 1 voltfree contact 1 A
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, RS232
Communication Serviceport monitoring
Physical Attributes
- Optic Fiber Length
- 4 km 62.5/125 µm
Conformance Attributes
- Certifications
- CE/cULus/RCM/UKCA, DNV
- Standards
- UL 508, EN/IEC 61131, EN/IEC 62368-1
Product CertificationsCE, UL, RCM, DNV, CE, UL, RCM, DNV, UKCA
Complementary Attributes
- Integrated Connection Type
- shielded RJ45 copper cable, duplex SC fiber optic
- Us Rated Supply Voltage
- 12...48 V
Maximum Cable Distance Between Devices100 m copper cable
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Attenuation
- 0-11 dB 62.2/125 µm), 0-8 dB 50/125 µm)
- Diagnostics Run Time
- signal contact, self test, MAC notification
- Function Available
- system information, report, IP Firewall list, configuration check, reachability test (ping), alarms (Traps)
- Marking
- CE, UL, RCM
- Redundancy
- redundant network coupling, router redundancy
- Transmission Support Medium
- twisted shielded pairs cable CAT 5E copper cable, multimode optical fiber
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Networking and Cable Solutions - Networking Devices
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Encryption Protocol
- MAC addresses filtering
- Mounting Support
- 35 mm symmetrical DIN rail
- Number Of Rj45 Port
- 1 10/100 Mbps
- Power Consumption In W
- 8.3 W
- Product Or Component Type
- Ethernet TCP/IP firewall
- Returnability
- No
- User Interface
- built-in firewall
- Pep Code
- ENVPEP1003004EN
- Height Nominal
- 145 mm
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
CybersecuritySyslog protocol support, IPSec
Ethernet Servicemulticast filtering, syslog
Local Signalling2 LEDs (green) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for internal port status, 1 dual colour LED (green/yellow) for serial port status
Port Ethernet10/100BASE-TX - 1 copper cable, 100BASE-FX - 1 fiber optic
Supply Voltage Limits9.6-60 V DC SELV, 18-30 V AC SELV
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Legacy Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2024
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Electrical Connectionremovable connector 6 ways power supply
Ethernet Cabling SystemTF switches
Number Of Port2
Number Of Uplink Port1 F/O multi mode 100 Mbps
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon Networking
Sustainable PackagingNo
Warranty In Months18
Offer Owner Code190786
Width Nominal60 mm
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1003004EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-95 % non-condensing
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation0-60 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1003004EN
General Attributes
- Product Or Component Type
- Ethernet TCP/IP firewall
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC001478
ETIM 9EC001478
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth125 mm
