nVent Hoffman MPGS08 Compact HMI Console 985x800x400mm Stainless Steel IP66
- MPN: MPGS08
- UPC: 783510512811
- PPN: HOF-MPGS08
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

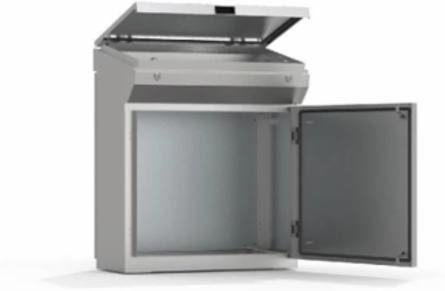

The console has a hinged desk panel and an ergonomic design that allows for easy installation and access to HMI. This One-Piece Consoles In Stainless Steel, MPGS, MPGS08 item measures 985x800x400mm has a material of Stainless Steel color Unpainted, finish Brushed.
Features
- Material: AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.
- Body: Folded and seam welded. Console construction includes a base that provides a distance between the floor and the lower part of the door/s, acting as an integrated plinth.
- Doors and panels: Single folded surface mounted with hinges, allowing left and right-hand opening to base door. Angle 12° from horizontal. Concealed hinges, on top edge, allow 90° opening. Panel held open by self engage/self release mechanical panel stay. Double door on 1200 wide base units.
- Mounting plate: Standard mounting plate in base unit.
- Lock: Double-bit 3 mm locks for top panel. For base, two double-bit 3 mm locks.
- Cable inlet: Bottom opening for cable access. Bottom plate for cable glanding supplied as standard.
- Earthing: M8 threaded studs on body, door, top panel and rear panel.
- Finish: 400 pre-grained stainless steel.
- Protection: Single door: IP 66, TYPE 4X, 12, 13, IK 10. Double door: IP 55, TYPE 12, 13, IK 10.
- Delivery: Mounting plate and suitable nuts and washers for earthing. The console is delivered on a wooden pallet.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 800
- Panel Size
- 790 x 699
- Material
- Stainless Steel 304
- Body Thickness
- 2
- Protection Rating
- IP66
Height (H)985
Depth (D)400
Max Mounting Depth357.5
FinishBrushed
Door Thickness2
Weight162.55
