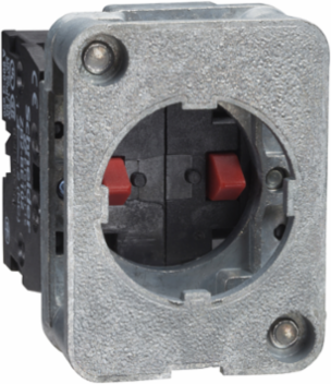

Schneider Electric XACS415 Harmony XAC Contact Block, Single, 1NC + 1NO, Front Mounting, 40mm Horizontal, 30mm Vertical
- MPN: XACS415
- PPN: SCH-XACS415
CAD
$81.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This spring return contact block is a separate component for double insulated, XACB pendant control station. It is designed for front mounting and features 1 NC + 1 NO contacts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Complementary Attributes
- Maximum Resistance Across Terminals
- 25 MOhm
- Rated Operational Power In W
- 42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Rated Operational Power In Va140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive385 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive455 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive525 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Terminal Identifier
- (11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
- Connections - Terminals
- screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.009415384615384615, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.011300699300699301, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Block Type
- single
- Contact Operation
- slow-break
- Electrical Circuit Type
- control circuit
- Mechanical Durability
- 1000000 cycles
- Mounting Of Block
- front mounting
- Product Or Component Type
- contact block
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.5 kg CO2 eq.
- Vertical Fixing Centres
- 30 mm
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XAC is a complete ready to use pendant station for control of single-speed motors and also ideal for hoists, travelling cranes in Industrial applications. Product has life span of 10 years with power consumption of 0.000012 W with use rate of 15% active and adhering to international standards IEC 60947-5-1 & UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCSA C22.2 No 14, IEC 60947-5-1
Terminals Description Iso N°1(23-24)NO, (11-12)NC, (23-24)NO, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1665958041958042
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.35524475524475524
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Component NameXACS
Contact Code DesignationA300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AQ300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Contacts Type And Composition1 NC + 1 NO
Horizontal Fixing Centres40 mm
Mechanical Interlockingwithout mechanical interlock
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XAC
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingNo
Type Of Operatorspring return
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP0709005EN
Pep Verification Date2024-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Ui] Rated Insulation Voltage500 V 3)IEC 60947-1
Short-circuit Protection10 A fuse protection cartridge gG
Package Weight(Lbs)72 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- XACA, ZA2B... head
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP0709005EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP0709005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.5425566433566433
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-17
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contact block
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
