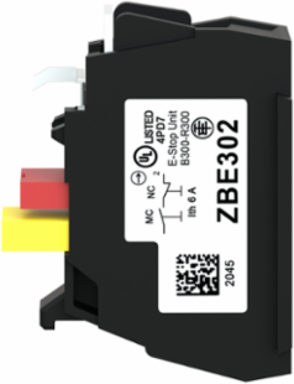

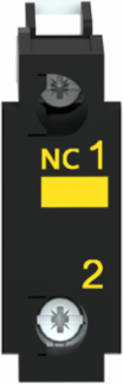

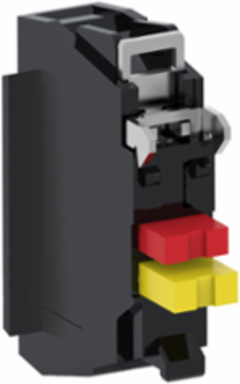

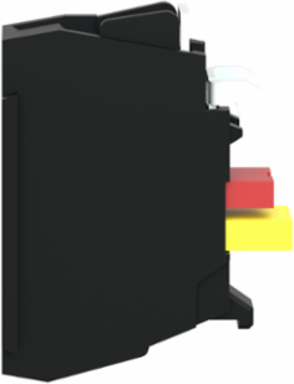

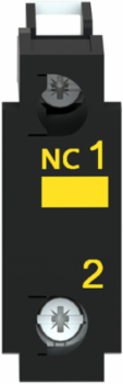

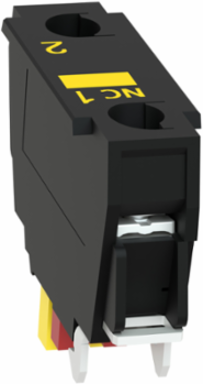

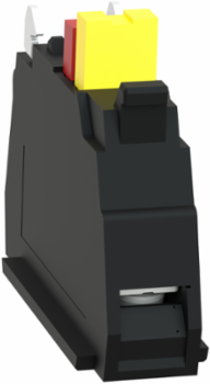

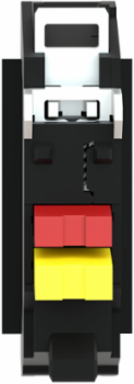

Schneider Electric ZBE302 Harmony XB4/B5 Single NC Monitoring Contact Block, 1 NC, Silver Alloy

  • MPN: ZBE302
  • PPN: SCH-ZBE302
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $51.26

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This product is part of the Harmony XB4 and XB5 range, an offer of Ø 22mm pushbuttons, switches and pilot lights. It is a single contact block with silver alloy contact. It is only used in combination with an emergency stop pushbutton and is not compatible with other pushbuttons. It comes with 1 NC monitoring contact with slow break operation. The NC contact is opened when the emergency stop is activated. The monitoring feature triggers emergency stop due to improper installation. It comes with CE, CCC, UKCA, EAC, UL and CSA certification. This monitoring contact is compatible for emergency stops in both the XB4 and XB5 range. It connects to control circuits with simple screw-clamp connections. The Harmony XB4 and XB5 range offers innovative features for simple and efficient use.

    Features

    • Unlike standard auxiliary contacts, this premium Harmony component functions as a 1 NC (Normally Closed) monitoring contact block. It is specifically engineered to detect whether the contact block is correctly attached to the front actuator head assembly. If the contact block accidentally unclips or separates due to severe vibration, improper installation, or a physical hit, the internal monitoring circuit mechanically forces the safety line open, triggering an immediate emergency shutdown rather than leaving the system in a dangerously unmonitored "blind" state.
    • This highly specialized element is designed exclusively for use with Harmony XB4 and XB5 series emergency stop push-buttons. It is structurally incompatible with standard selector switches or normal momentary push-buttons, acting as a dedicated hardware-level supervisor for critical life-safety containment zones.
    • Built with a certified positive opening mechanism conforming to EN/IEC 60947-5-1 Appendix K, the Normally Closed monitoring path does not rely solely on spring tension to open. When the emergency stop actuator is struck, the internal mechanics apply a direct, continuous force that physically shears apart micro-welds or contact stickiness within 1.5 mm of operating travel, guaranteeing a reliable stop execution.
    • Optimized for control-circuit interlocking rather than switching high-power loads, this block features a conventional free-air thermal current of 6 A and a rated insulation voltage of 300V. It operates reliably under AC-15 utilization parameters up to 3 A at 120V or 1.5 A at 240V, interfacing seamlessly with safety controllers and modern dual-channel safety relays.
    • Equipped with standard finger-safe IP20 screw clamp terminals, the unit delivers a reliable connection utilizing up to 1.2 N.m of tightening torque.
    • Built using heavy-duty silver-nickel (Ag/Ni) contacts housed in a durable plastic chassis, this module delivers a mechanical and electrical durability rating of 300,000 cycles. It features specialized TH protective treatments that permit continuous operation across a wide thermal range from -40 C to 70 C, shielding internal contact elements from moisture and thermal shock.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia, Singapore

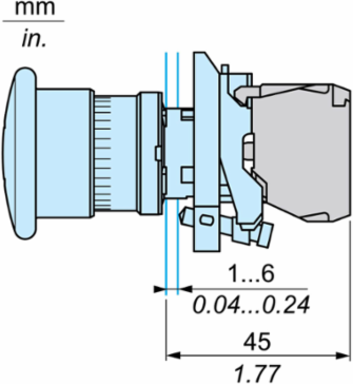

    Physical Attributes

    Cad Overall Depth
    26 mm
    Cad Overall Width
    10 mm
    Cad Overall Height41 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Contacts Material
    silver alloy (Ag/Ni), silver alloy (Ag/Ni)
    Electrical Reliability
    λ < 10exp(-7) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 3.4 mA in clean environment IEC 60947-5-4
    Range Of Product
    Harmony XB4, Harmony XB5
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    Certificate Agency
    CSA, EAC, BV, DNV, CE, LROS (Lloyds register of shipping), CCC, UL Listed, CB Scheme, UKCA
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.02360883824346859
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.1 kg CO2 eq., 0.08060867148415785
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2201
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Average Percentage Of Recycled Metal Content
    13 %
    Compatibility Code
    ZBE
    Contact Operation
    slow-break
    Contacts Usage
    monitoring contact
    Mechanical Durability
    300000 cycles
    Operating Force
    5 N NC changing electrical state
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TH
    Sale Per Indivisible Quantity
    5
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    0.1 kg CO2 eq.
    Contacts Composition 6
    1 NC
    Pep Code
    ENVPEP2304014EN
    Pep Verification Date
    2024-06-09
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    No energy used
    Recyclability Potential, In %
    98
    [Ui] Rated Insulation Voltage
    300 V 3)IEC 60947-1
    Short-circuit Protection
    6 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)
    13.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Operating Travel1.5 mm NC changing electrical state), 4.3 mm total travel)
    Shape Of Screw Headcross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    [Ie] Rated Operational Current1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 3 A 120 V, AC-15, B300 IEC 60947-5-1, 0.11 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    Carbon Footprint Of The Distribution Phase [A4]0.001699972206781545, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.009156364647026124, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content23 %
    Contact Block Typesingle
    Contacts Type And Composition1 NC monitoring contact
    Device Short NameZBE
    Mounting Of Blockfront mounting
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecontact block
    ReturnabilityYes
    Software Versionv6.2.5-6
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Connections Terminals 8 Connections Terminalsscrew clamp terminals
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionPushbutton contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.002 W with 35% utilisation rate and the product has a life of 10 years and adhering to international standards IEC 60947-1 &amp; IEC 60947-5-4.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    [Ith] Conventional Free Air Thermal Current6 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    13 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.1150738465814341
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2304014EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2304014EN
    Ip Degree Of ProtectionIP20 IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2024-06-09
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Range Of Product
    Harmony XB4, Harmony XB5
    Product Or Component Typecontact block

    ETIM

    ETIM 8
    EC000041
    ETIM 9EC000041

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    basic element
