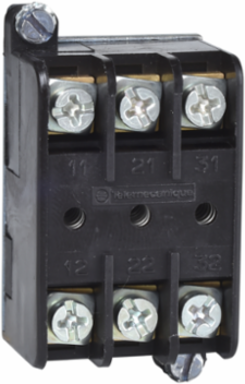

Telemecanique Sensors XENT1192 Harmony XAC Isolating Switch, 3 NC Contacts, 10A, 400V
- MPN: XENT1192
- PPN: SCH-XENT1192
CAD
$107.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Harmony XAC range, an offer of pendant control stations for Ø22mm plastic signalling units. This single isolating block for control circuit. It has 3 normally closed contacts. It is an isolating block with a rated insulation voltage of 400V and a conventional enclosed thermal current of 10A. It is designed for front mounting with slow-break contact operation. It is furnished with screw clamp terminals for electrical connection. It offers mechanical durability of 1 million operating cycles. It weighs 0.05kg. It is suitable for industry and service sector, hoist and travelling cranes. It meets CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1 and EN/IEC 60204-32 standards. It is compatible with the pendant control stations XACA. It is designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards. They are not only simples and intuitive, but also very comfortable for the operator to use.
Features
- Outfitted with three normally closed (3 NC) slow-break contacts, this configuration ensures reliable circuit interruption for safety-critical operations like emergency stop push-buttons. This direct-acting electrical design provides redundant safety pathways, guaranteeing that your overhead crane or material handling line comes to an immediate, fail-safe halt the moment an operator depresses the emergency switch.
- Engineered for punishing industrial environments, this robust block boasts a mechanical durability rating of 1 million operating cycles. It maintains reliable operational power within a wide temperature range of -25 C to 70 C (-13 F to 158 F) and withstands 15g of vibration, ensuring that severe temperature drops or heavy equipment vibrations will not trigger false trips or structural failures.
- Built to meet rigorous international regulatory standards, this module features a 400V rated insulation voltage, a 10A conventional enclosed thermal current, and built-in 10A cartridge fuse protection (type gG). It fully complies with UL 508, CSA C22.2 No 14, and EN/IEC 60947-5-1 safety standards, simplifying facility compliance audits and assuring engineers of its reliable performance under electrical load.
- Featuring secure screw clamp terminals, this isolating block accommodates solid or stranded industrial wiring from 0.5 mm2 up to 2.5 mm2 without cable ends. The vibration-resistant terminals eliminate the risk of wire pull-out, safeguarding your control loop against intermittent connections and saving valuable time during high-volume control box wiring or field troubleshooting.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Of Block
- front mounting
- Range Of Product
- Harmony XAC
- Contact Block Type
- single
- Product Or Component Type
- isolating switch
- Component Name
- XENT
Contacts Type And Composition3 NC
Contact Operationslow-break
Electrical Circuit Typecontrol circuit
Contact Block Applicationemergency stop push-button
Product CompatibilityXACA
Complementary
- Connections - Terminals
- screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
- Maximum Resistance Across Terminals
- 25 MOhm
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Net Weight
- 0.05 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage400 V 3)IEC 60947-1
Mechanical Durability1000000 cycles
Operating Force14 N
Contact Code DesignationA600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Rated Operational Power In W40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60204-32
- Shock Resistance
- 100 gn IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance15 gn 10-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
