Lutron CTCL-153P-WH Skylark Contour LED Dimmer Switch 150W LED/600W Incandescent, Gloss White
Lutron CTCL-153P-WH Skylark Contour LED Dimmer Switch 150W LED/600W Incandescent, Gloss White
- MPN: CTCL-153P-WH
- UPC: 027557002967
- PPN: LUT-CTCL-153P-WH
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$31.50/ EA
Description
The Lutron Skylark Contour LED+ dimmer switch includes the most advanced technology for superior dimming for up to 150W of dimmable LED or 600W of Incandescent/Halogen. The Skylark Contour dimmer switch features a smooth, linear slider to dim or brighten the lights while the rocker switch turns lights ON/OFF. Set a favorite preset level with the slider before turning on. The Skylark Contour also features an easy low-end trim adjustment directly on the dimmer which eliminates complicated programming or having to turn the power off. Available in 7 gloss colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes (1) Lutron Skylark Contour LED+ Dimmer Switch; Gloss Finish
- Rated for up to 150W LED or 600W Incandescent/Halogen
- No Neutral Required; 120v
- Single Pole or 3-Way compatible; Wire lead installation
- Minimum load requires 1 compatible LED or 10W Incandescent/Halogen

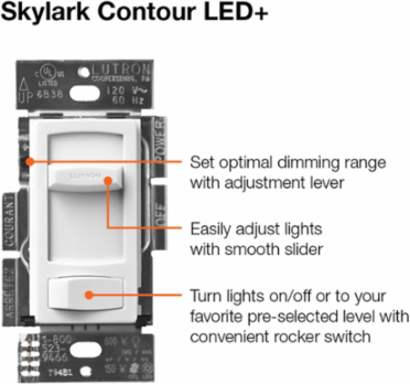

- Easy low-end trim adjustment lever; No complicated programming or turning off power to set
- Rocker switch turns lights on/off to favorite preset light level
- Linear slider dims and brightens the lights
- Available in 7 Gloss colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Rocker switch returns light to light level indicated by slider
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Specifications
Specifications
- Environmental Conditions
- Indoor use only
- Application
- Lighting Control
- Type
- Dimmer with on/off switch, 3-way/single-pole
- Aesthetic Finish
- Glossy
- Decorative Color
- White
- Family Color
- White
- Connection Type
- Wire Leads
- Face Material
- Metal;Plastic
- Insulation
- Plastic
- Size

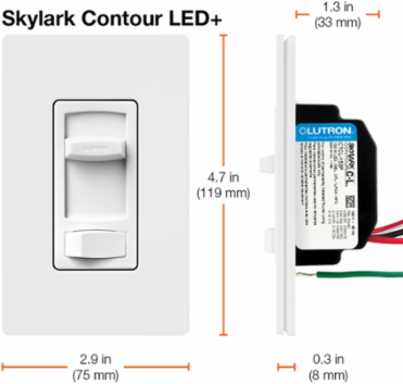

- 4.69 x 2.94;119 x 75 in;mm
- Connection
- Wire Leads
- Actuator
- Rocker/Slide
- Material
- Plastic/Metal
Wattage600 W
Operating Temperature, Maximum104 F
Voltage Rating120
Operating Temperature, Minimum32 F
Frequency Rating, Maximum60 Hz
Switch TypeSlide
Number of Poles1
FinishGloss
EnclosurePlastic
Operating Temperature32 to 104 F
ColorWhite
MountingWallbox
