Lutron MA-PRO-WH Maestro PRO LED Dimmer Switch, 600W Incandescent/LED, 4.69 x 2.94 Inch, White
Lutron MA-PRO-WH Maestro PRO LED Dimmer Switch, 600W Incandescent/LED, 4.69 x 2.94 Inch, White
- MPN: MA-PRO-WH
- UPC: 784276261760
- PPN: LUT-MA-PRO-WH
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$82.98/ EA
Description
The Maestro PRO LED+ Neutral Optional Dimmer Switch features advanced phase selectable dimming, color change kits, and is designed for a broader compatibility range of high efficiency lighting. UL listed to control dimmable LEDs with integrated drivers, ELV, MLV, incandescent, and halogen loads as well as Phillips Mark 10® ballasts and Lutron Hi-Lume 1% 2-Wire (LTE) LED drivers. The large decorator style tap switch turns lights on/off and the dimming buttons allows for local fine-tune dimming. Works with up to 9 Maestro Companion Dimmer Switches (MA-R-xx) to create a multi-location dimming application. Neutral Optional. Screw terminal installation. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Maximum Rating: 250W LED, 500W Incandescent / Halogen/ ELV, 400VA MLV, or 20 Hi-Lume 1% 2-Wire (LTE) LED Drivers
- Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1% LED drivers
- Single pole or multi-location dimming from up to 9 locations with companion dimmer (MA-R-xx sold-separately)

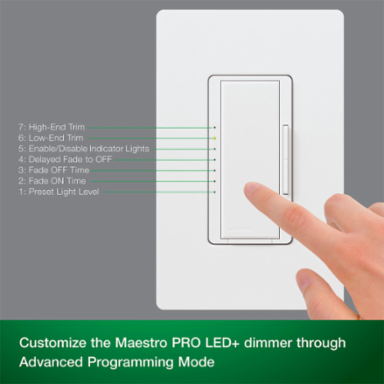

- Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select

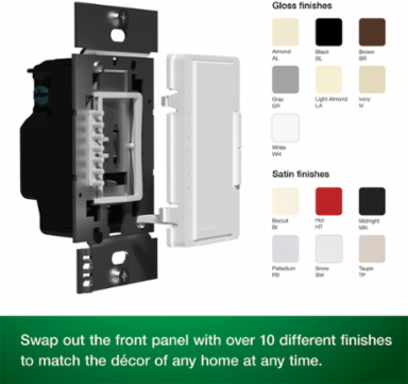

- Interchangeable color kits available for front panel (color change kit MK-D sold separately)

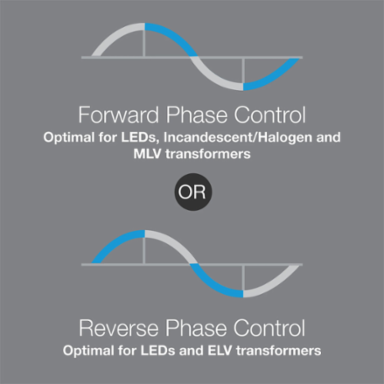

- Phase Auto-Select: Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase; When neutral is not connected, the automatic default is forward phase)
- Power failure memory; Should power be interrupted, the control will return to its previous state when power is restored

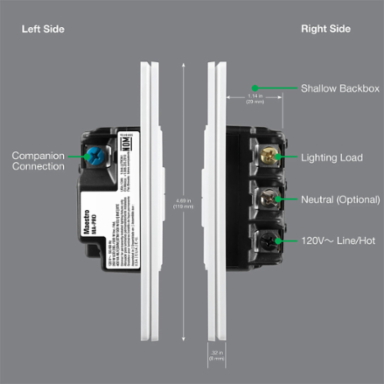

- Screw Terminals for easy install; Can be installed on either load or line side of circuit

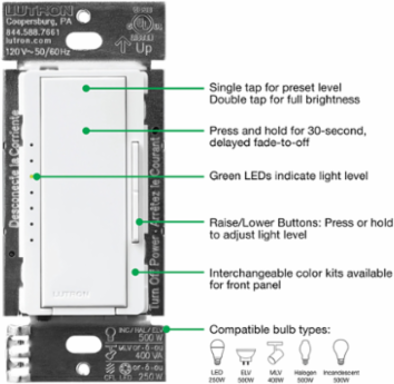

- While load is on: Green indicator lights brighten and reflect light level; When load is off: Indicator lights remain in a soft glow state

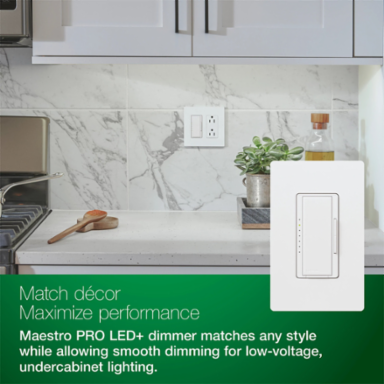

- Maestro PRO LED+ dimmers and wall plates are available in 10+ colors (wall plate sold separately)
- Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Provides true dimming from each location (with companion dimmers)
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Specifications
Specifications
- Environmental Conditions
- 0 to 90% humidity, non-condensing. Indoor use only.
- Aesthetic Finish
- Glossy
- Frequency Rating, Minimum
- 50 Hz
- Operating Temperature, Minimum
- 32 F
- Voltage Rating
- 120
- Switch Type
- Tapswitch
- Family Color
- White
- Connection Type
- Screw Terminal
- Finish
- Gloss
- Enclosure
- Plastic
- Connection
- Screw terminal
- Mounting
- Wallbox
- Material
- Plastic/Metal
Wattage600 W
ApplicationLighting Control
Operating Temperature, Maximum104 F
TypeDigital fade dimmer, multi-location/3-way/single-pole
Decorative ColorWhite
Number of Poles1
Face MaterialMetal;Plastic
Frequency Rating50 to 60 Hz
InsulationPlastic
Size4.69 x 2.94;119 x 75 in;mm
ActuatorTapswitch
Operating Temperature32 to 104 F
ColorWhite
