Schneider Electric NSYS3CM304020 S3CM HMI Enclosure 300mm x 400mm x 200mm IP54 IK10

  • MPN: NSYS3CM304020
  • PPN: SCH-NSYS3CM304020

CAD

$720.46

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

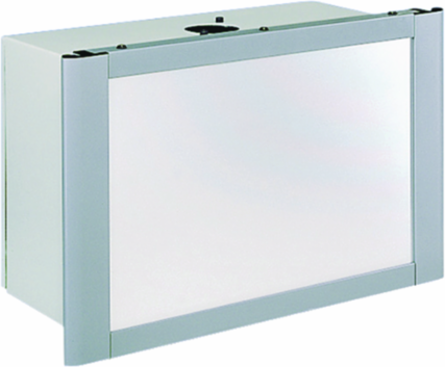

Spacial S3CM, Human machine interface enclosure. 299 x 400 x 200 mm. Human-machine dialogue application, control enclosure. With rear door. Steel for frame, and aluminium for trim frame. IP54 protection and IK10. Grey RAL 7035.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Spain

Physical Attributes

Color
enclosure Gray RAL 7035)front face Gray RAL 7040)
Enclosure Nominal Width
400 mm
Enclosure Nominal Height300 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 body, 1 door with lock2 rail, 1 reinforcement plate, 1 front trim frame
Carbon Footprint Of The Distribution Phase [A4]
17.578047040713095, 18 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
1.744388915047549, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
kg CO2 eq., 0
Local Publishable Date
2026-04-15
Stocking Flag
Y
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Body Type
single piece body
Door Opening Side
reversible 120 °)
Energy Efficiency Optimized
False
Material
enclosure and front face steeltrim frame aluminium
Number Of Doors
rear 1
Product Destination
interface
Product Or Component Type
control enclosure
Returnability
No
Surface Finish
epoxy-polyester powder
Total Lifecycle Carbon Footprint
83 kg CO2 eq.
Pep Code
ENVPEP1001004EN
Pep Verification Date
2024-10-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate Agency
UL
Package Weight(Lbs)
8.854 kg
Warranty (In Months)
18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Removable Partsdoor by hingestrim frame by screws, 2 rails by screws
Carbon Footprint Of The End-of-life Phase [C1 To C4]21 kg CO2 eq., 20.85873265970472
Carbon Footprint Of The Manufacturing Phase [A1 To A3]43 kg CO2 eq., 43.23051435416452
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationhuman-machine dialogue application
Door TypeSolid
Lock Type3 mm double-bar lock
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product NamePanelSeT S3CM
RangePanelSeT
Software Versionv6.1
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %98
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
83.41168296962988
Eu Rohs Directive
Compliant
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP1001004EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Ip Degree Of ProtectionIP54 IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
control enclosure

ETIM

ETIM 8
EC002504
ETIM 9EC002504

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
