Square D

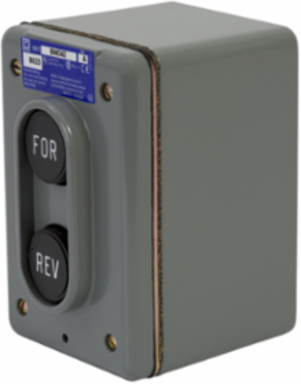

Square D 9001BW242 Control Station 600V 5A Ø30 Momentary Pushbuttons, 2 N.O, NEMA 1/4

Control Station 600V 5A Ø30 Momentary Pushbuttons, 2 N.O, NEMA 1/4
  • MPN: 9001BW242
  • UPC: 785901856672
  • PPN: SCH-9001BW242

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$325.34/ EA

Description

This control station from Schneider Electric is designed to enhance automation and control applications with its robust functionality and user-friendly interface. Featuring a momentary pushbutton configuration with two normally open contacts, it facilitates smooth operational control with a voltage rating of 600V and a current rating of 5A. Ideal for various industrial settings, the station is housed in a NEMA 1/4 enclosure which provides effective protection against environmental factors, ensuring reliable performance in a range of applications. With its thoughtful design and practical features, this control station stands out as an essential accessory for any automation setup.

Specifications

Voltage
600 V AC
Mechanical Durability
5,000,000 cycles
Storage Temperature Range
-40 to 70 °C (-40 to 158 °F)
Enclosure Rating
NEMA 1, NEMA 4
Cable Entry
1 entry for 1/2" - 14 NPT
Material
Cast Aluminium
Certifications
CSA, UL Listed
Toxic Heavy Metal Free
Yes
RoHS Compliance
Pro-active compliance (out of EU RoHS scope)
Color of Enclosure Base
Grey
Control Station Application
Two functions
Current0.6 A AC-1/DC-1, 0.75 A 480 V AC, 1.5 A 240 V AC, 3.75 A 120 V AC
Operating Temperature Range-25 to 70 °C (-13 to 158 °F)
Contacts1 Normally Open + 1 Normally Open (1 NO + 1 NO)
Device MountingSurface
Dimensions (W x H x D)70 mm x 108 mm x 91 mm (2.76 in x 4.25 in x 3.58 in)
Environmental CharacteristicWaterproof, Dustproof
StandardsIEC 60947-5-5, UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, JIS C 4520, IEC 60947-1
Mercury FreeYes
Reach ComplianceFree of SVHC above threshold
Country of OriginMexico
