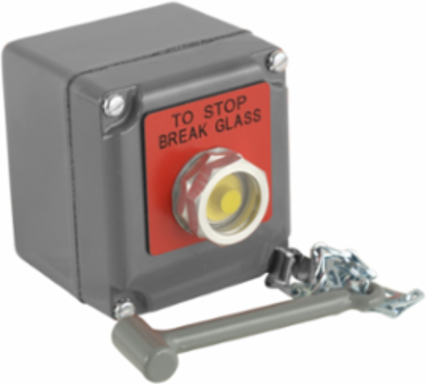

Schneider Electric 9001KYK116 Harmony 9001K Complete Control Station with 10A Rating and Die Cast Zinc Alloy Enclosure
- MPN: 9001KYK116
- UPC: 785901039839
- PPN: SCH-9001KYK116
CAD
$468.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This complete control station from Schneider Electric combines functionality and durability with its robust die-cast zinc alloy enclosure. Designed for versatile applications, it features a 10A rating, making it suitable for a variety of industrial environments where reliable control is essential. The Harmony 9001K series is known for its user-friendly interface, ensuring operators can manage controls effectively and safely. With its sturdy construction, this station not only withstands demanding conditions but also seamlessly integrates into existing systems for enhanced operational efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Physical Attributes
- Color Of Cover
- grey
Housing Colorgrey
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Provided Equipment
- contact block, legend plate
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.5712947445
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 12 kg CO2 eq., 12.196700438
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Station Composition
- 1 push-button 1 NO + 1 NC STOP-BREAK GLASS
- Device Short Name
- KY
- Housing Material
- metal
- Product Or Component Type
- complete control station
- Returnability
- Yes
- Sustainable Packaging
- No
- Ac Control Voltage 50 Hz
- 125-600 V
- Number Of Command Positions
- 1
- Number Of Contacts As Normally Open Contact
- 1
- Color Of Cover
- grey
- Pep Code
- ENVPEP2503027EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
- [Ie] Rated Operational Current Ac
- 10 A
- Enclosure/Cubicle Description
- surface mounting
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509031
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.2441352701, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.3855478248, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Contact Block NameKA1
Dc Control Voltage125-600 V
Enclosure Materialdie cast zinc alloy Gray
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony 9001K
Software Versionv5.9.4
Total Lifecycle Carbon Footprint14 kg CO2 eq.
Ac Control Voltage 60 Hz125-600 V
Number Of Contacts As Normally Closed Contact1
Number Of Push Buttons1
Housing Colorgrey
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
Recyclability Potential In %15
Connections - Terminalsscrew-clamp terminals
Emergency Power Off (Epo)no
Package Weight(Lbs)1.814 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 14.3976782774
- Environmental Disclosure
- ENVPEP2503027EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2503027EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionNEMA 4/13
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Provided Equipment
- contact block, legend plate
- Range Of Product
- Harmony 9001K
Product Or Component Typecomplete control station
ETIM
- ETIM 8
- EC000225
ETIM 9EC000225
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
