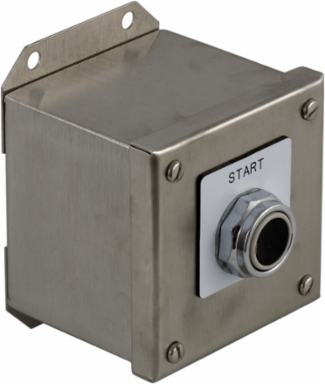

Schneider Electric 9001KYSS111 Harmony 9001K Control Station, NEMA 3/4/13, Stainless Steel Enclosure, 10 A
- MPN: 9001KYSS111
- UPC: 785901040125
- PPN: SCH-9001KYSS111
CAD
$506.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robustness and reliability, this control station features a stainless steel enclosure that ensures durability in various industrial settings. Designed by Schneider Electric, the Harmony 9001K series is built to protect controls in environments classified under NEMA 3, 4, and 13, making it ideal for applications subject to moisture, dust, and mechanical impacts. With a current rating of 10 A, this model provides effective control capabilities tailored for demanding operations while safeguarding crucial electrical components. This combination of strength and versatility makes it an essential choice for panel builders and operational facilities seeking quality and performance.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Color Of Cover
- grey
Housing Colorgrey
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contact Block Name
- KA1
- Dc Control Voltage
- 125-600 V
- Enclosure Material
- Stainless Steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Provided Equipment
- contact block
- Returnability
- No
- Ac Control Voltage 50 Hz
- 125-600 V
- Number Of Command Positions
- 1
- Number Of Contacts As Normally Open Contact
- 1
- Color Of Cover
- grey
- Pep Code
- ENVPEP2503027EN
- Connections - Terminals
- screw-clamp terminals
- Emergency Power Off (Epo)
- no
- Package Weight(Lbs)
- 1.361 kg
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Station Composition1 push-button 1 NO + 1 NC HAND-OFF-AUTO
Device Short NameKY
Housing Materialmetal
Product Or Component Typecomplete control station
Range Of ProductHarmony 9001K
Sustainable PackagingYes
Ac Control Voltage 60 Hz125-600 V
Number Of Contacts As Normally Closed Contact1
Number Of Push Buttons1
Housing Colorgrey
[Ie] Rated Operational Current Ac10 A
Enclosure/Cubicle Descriptionsurface mounting
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509031
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 4/13
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP66
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- complete control station
- Range Of Product
- Harmony 9001K
Provided Equipmentcontact block
ETIM
- ETIM 8
- EC000225
ETIM 9EC000225
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
