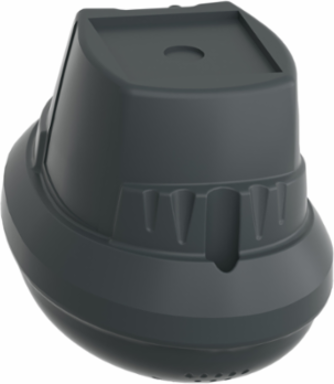

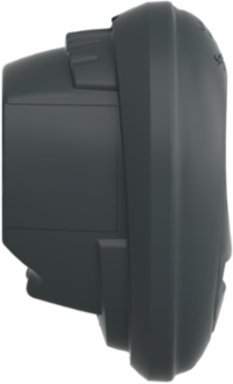

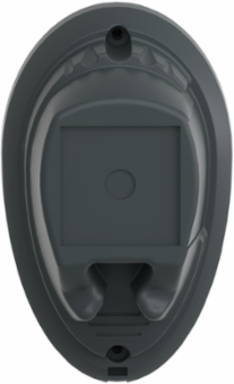

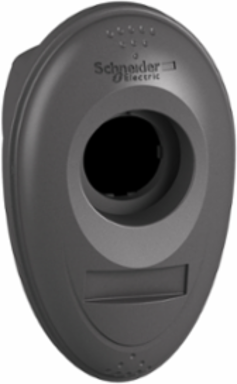

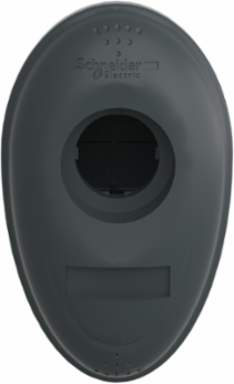

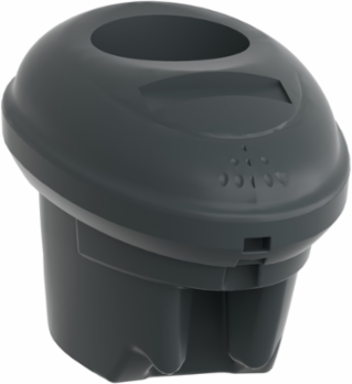

Schneider Electric ZBRM01 Harmony XB5R Empty Handy Box, 22mm Cut Out, IP65, Dark Grey
- MPN: ZBRM01
- PPN: SCH-ZBRM01
CAD
$61.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This empty handy box provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments This empty handy box is realise with a green plastic
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Hungary, United States
Physical Attributes

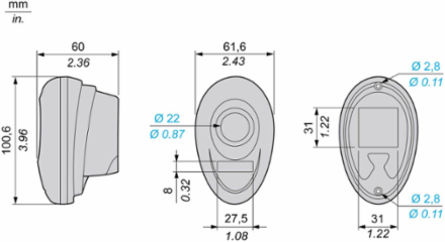

- Cad Overall Height
- 60 mm
- Color Of Base Of Enclosure
- dark grey RAL 7016)
Cad Overall Width100.6 mm
Color Of Coverdark grey RAL 7016)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- C-tick, FCC, ANATEL, RSS, BT 2006/95/EC, GOST, CE, SRRC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0489430293
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.9 kg CO2 eq., 0.8954325333
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1103010EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- XB5R
- Device Short Name
- ZBRM
- Main Group
- 1 cut-out
- Mounting Diameter
- 22 mm
- Product Destination
- for XB5R Ø 22 mm control units
- Range Of Product
- Harmony XB5R
- Software Version
- EIME v5.8.1
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Color Of Cover
- dark grey RAL 7016)
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity Mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 12
- Package Weight(Lbs)
- 98.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.015462048, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0026147968, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Station Applicationone function
Group Of Producthandy grey
Materialpolycarbonate
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeempty handy box
ReturnabilityYes
Sustainable PackagingNo
Color Of Base Of Enclosuredark grey RAL 7016)
Pep CodeENVPEP101106EN
Pep Verification Date2020-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; <lt/> 1kV; EU-27
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code3926909989
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Directives
- 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1103010EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint0.9624524075
Environmental DisclosureENVPEP101106EN
Ip Degree Of ProtectionIP65 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP101106EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- empty handy box
Range Of ProductHarmony XB5R
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
