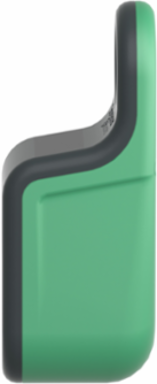

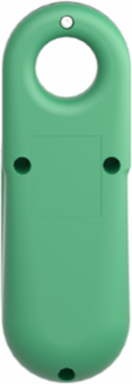

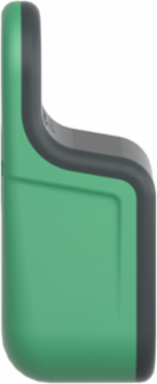

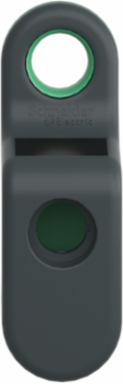

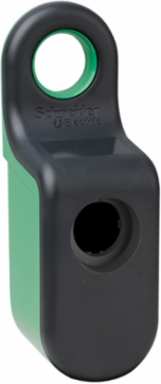

Schneider Electric ZBRM21 Harmony XB5R Green Plastic Handy Box, IP65, 1 Cut-Out for 22 mm Control Units
- MPN: ZBRM21
- PPN: SCH-ZBRM21
CAD
$75.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This empty handy box is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features one cut-out for XB5R diameter 22 mm control units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It is in polycarbonate green (Pantone 355C) and it weighs 110g. The mobile box associated with its support function is adapted for static and mobile applications mounted on vehicles.
Documentation & Downloads
Specifications
Key Specifications
- Control Station Application
- one function
- Range Of Product
- Harmony XB5R
- Device Short Name
- ZBRM
Product Destinationfor XB5R Ø 22 mm control units
Product Or Component Typeempty handy box
Complementary
- Colour Of Cover
- dark grey RAL 7016)
- Material
- polycarbonate
Colour Of Base Of Enclosuregreen Pantone 355C)
Net Weight0.11 kg
Environment
- Product Certifications
- ANATEL || BT 2006/95/EC || CE || FCC || C-Tick || SRRC || RSS || GOST
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65 IEC 60529
Ik Degree Of ProtectionIK03 conforming to EN 50102
Directives2004/108/EC - electromagnetic compatibility || 1999/5/EC - R&TTE directive
StandardsCSA C22.2 No 14 || ETSI EN 301 489-1 || ETSI EN 300 440-2 || ETSI EN 300 440-1 || EN/IEC 60947-5-1 || ETSI EN 301 489-3 || UL 508
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP101106EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1103010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
