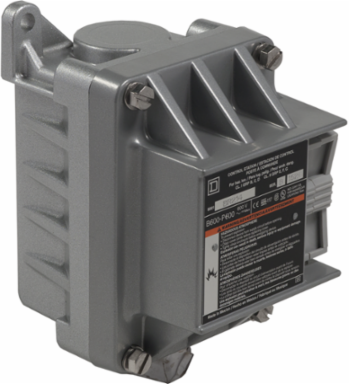

Schneider Electric 9001BR218 Control Station Type B 2 Operators NEMA 7/9, Surface Mounted, Cast Zinc
- MPN: 9001BR218
- UPC: 785901600916
- PPN: SCH-9001BR218
- UNSPSC: 39121565
CAD
$478.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This control station from Schneider Electric is engineered for robust operation in challenging environments, specifically designed to meet NEMA 7/9 standards for hazardous locations. Featuring a surface-mounted design and constructed from durable cast zinc, it accommodates two operators, allowing for seamless control in industrial applications. Ideal for use in automation and control systems, this reliable accessory enhances safety and efficiency, making it a vital component for operators looking to optimize their equipment in potentially explosive atmospheres.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Complementary Attributes
| Ie Rated Operational Current | 5 A 600 V, AC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 1, no |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 1 NO + 1 NC |
| Control Station Composition | 1 push-button, black1 push-button, black without marking |
| Device Short Name | 9001BR |
| Housing Material | metal |
| Material | cast zinc |
| Operator Profile | 2 flush push-buttons |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony 9001B |
| Sustainable Packaging | No |
| Ac Control Voltage 50 Hz | 125-600 V |
| Number Of Command Positions | 2 |
| Number Of Contacts As Normally Open Contact | 1 |
| Color Of Base Of Enclosure | grey |
| Housing Color | grey |
| Customs Code | 8537109170 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR |
| Local Publishable Date | 2026-01-12 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Compatibility Code | 9001BR |
| Control Station Application | two functions |
| Dc Control Voltage | 125-600 V |
| Environmental Characteristic | hazardous location |
| Marking | CE |
| Mechanical Durability | 5000000 cycles |
| Operators Description | w/o Legend Insert |
| Product Or Component Type | complete control station |
| Returnability | No |
| Type Of Operator | maintained |
| Ac Control Voltage 60 Hz | 125-600 V |
| Number Of Contacts As Normally Closed Contact | 1 |
| Number Of Push Buttons | 2 |
| Color Of Cover | grey |
| Nbr. Of Units In Pkg. | 1 |
| Emergency Power Off Epo | no |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 4X/13, NEMA 7/9 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | complete control station |
|---|
| Range Of Product | Harmony 9001B |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|---|
| ETIM 10 | EC000225 |
| ETIM 9 | EC000225 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
